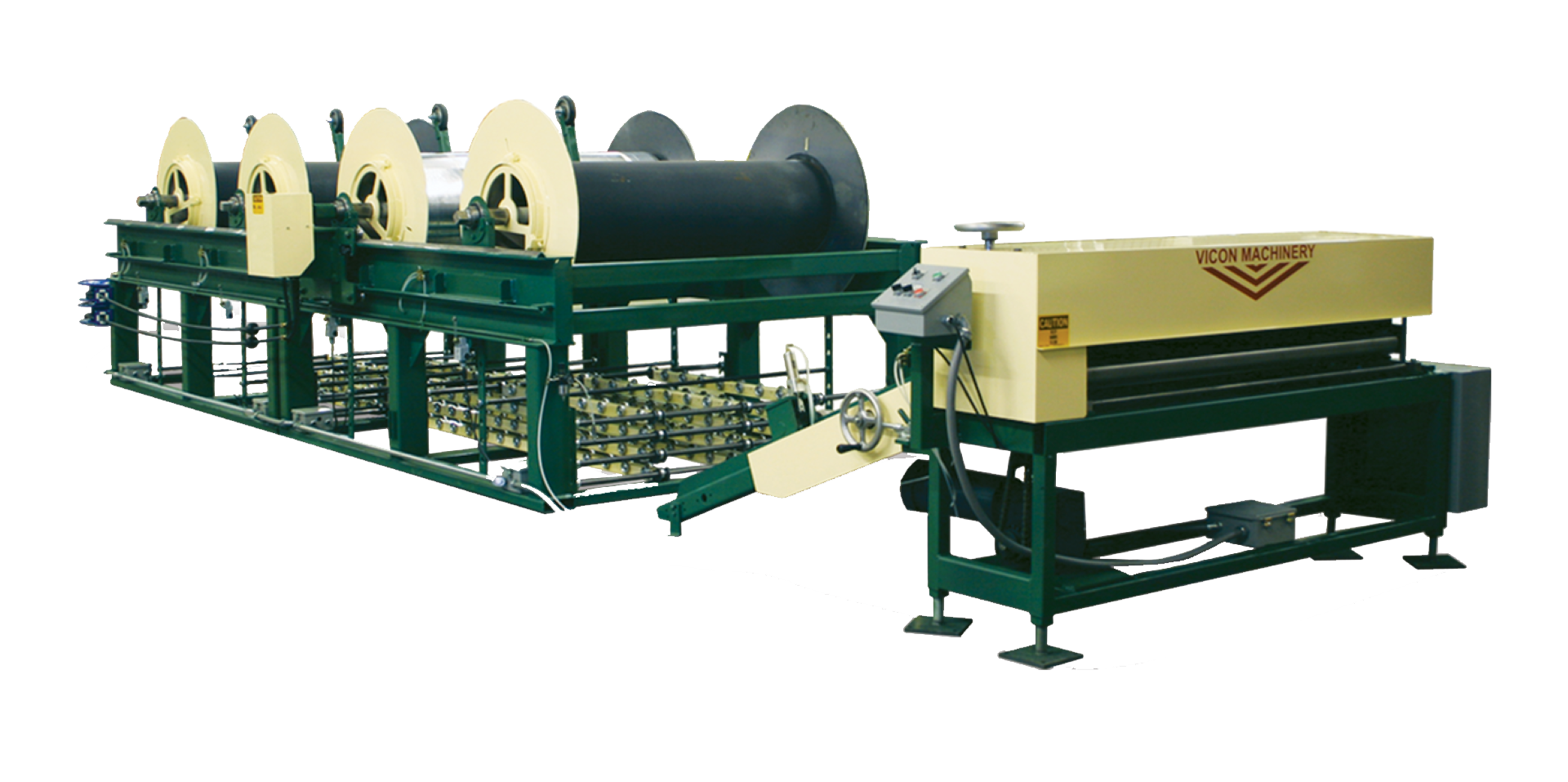

Coil Feed System

Optimize your operations and cut costs with the Vicon Coil Feeding System. Designed to streamline your workflow, this advanced system reduces waste and eliminates manual labor by uncoiling, straightening, beading, and feeding materials of varying thicknesses directly to your laser or plasma cutting machine.

Features & Benefits

Capable of handling up to 6 underfed coil cradles
16-28-gauge mild steel capacity
12,000lb coil capacity
Hydraulic coil drive for smoother acceleration and deceleration of coils, utilizing auto coil reversal rewind technology
Powered infeed guide ramp for safe, hands-free coil feeding
Pneumatic backup wheels at each station for safe band removal and positive coil feed
Choice of beading either up or down to suit your shop standards
Will feed other plasma cutting systems

Options

72” coil width
Overfed coil cradles available to reduce floor space
14-gauge capacity with six roll heavy-duty straightener
