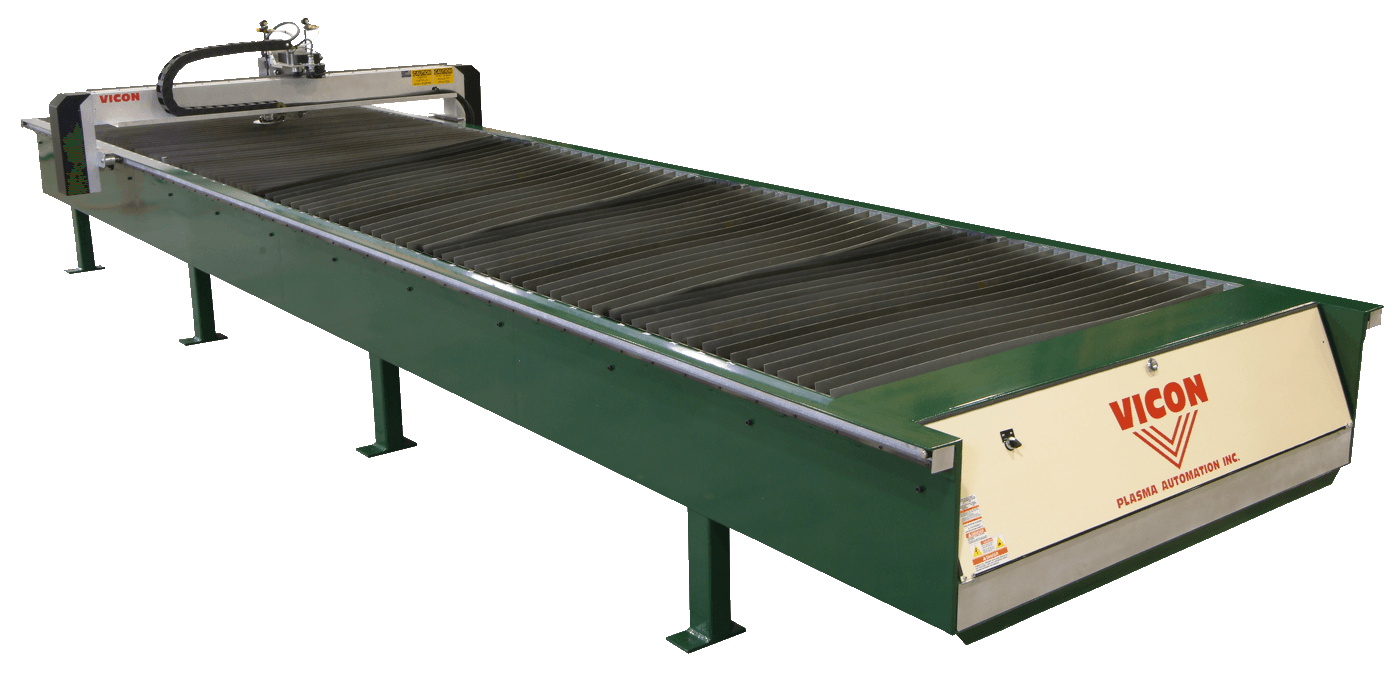

Boost your efficiency by at least 40% using the VICON HVAC 520. Completed fittings are removed from one end of the equipment while the cutting process continues at the opposite end, leading to increased throughput and quicker job completion. This system provides all the familiar functionalities and advantages of the standard HVAC 510... and then some!
Features & Benefits
| Standard 5' x 20' cutting area with options for up to 6' x 20' cutting area |
| Flexibility to cut two 10’ sheets or up to 22’ |
| State-of-the-Art electronics incorporating high speed motors capable of traversing at a maximum 2000 ipm resulting in faster part production |
| Rigid, extruded aluminum gantry results in “low inertia” producing highly accurate parts, sharp corners and notches |
| Rugged drives are sized for minimizing system wear and tear while providing peak performance |
| Non-lubricating gears and bearings |

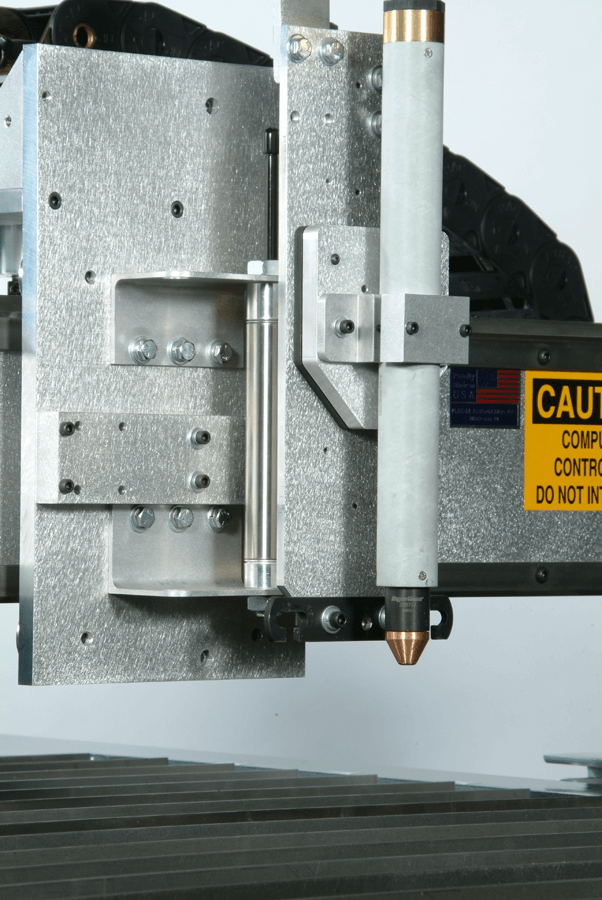

| Quick release magnetic torch holder allows for consumables to be changed quickly and without tools |
| State-of-the-Art PC Control with Vicon HVAC Cutting Software enables the programming, loading of new jobs and editing to be done at the machine while it is operating |
| On screen status control provides efficient control and easy diagnostics |
| Torch choice flexibility for cutting a variety of materials from gauge to ½” plate |
| Quick release magnetic torch holder allows for consumables to be changed quickly and without tools |
| One-piece down draft table includes built-in automatic CNC controlled exhaust fan circuit (only on during cutting) |
| Ideally suited to integrate with the Vicon Plasma Feeding System |
| Effective Cutting Area | 5' x 20' (standard) |
| Material Capacity | 28-gauge to 1/2" thick plate |
| Machine Dimensions | 288" x 90" x 35" |
Options
| Liner cutting feature |
| High-speed cutting feature |
| Download interface from most CAD/CAM software programs |
| Office programming system including PC, software, LAN cable and hub |
| Vicon ViSoft Value Added Software Modules |
| Vicon Plasma Feeding System |
| Industrial grade PC Control cabinet |
