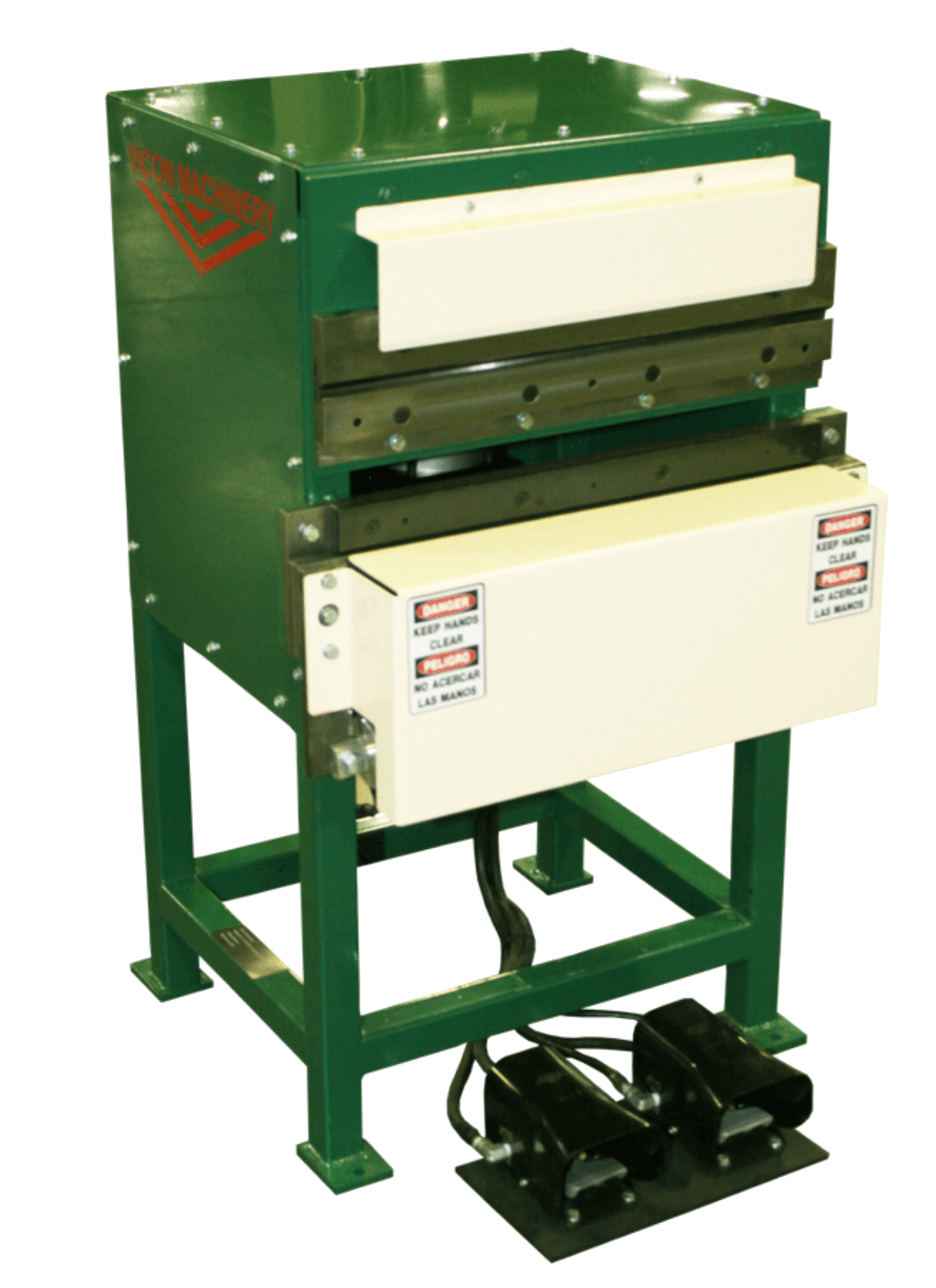

Pneumatic Cheek Bender

The Vicon Cheek Bender will form 1/4" and 7/16" male quarter edge flanges to the cheeks of your fittings. An optional Button Punch lancing feature is available.

Features & Benefits

Designed to form a 90° flange on either side of the unit

(Optional Button Punch available)
18-Gauge mild steel maximum capacity
24” wide bending capacity
Foot pedal control
Inclined face for ease of use & better ergonomics
Open ended allowing formation on either side as well as longer flanges with additional cycles
Welded tubular frame
Replaceable, hardened wear plate for use with plasma cut edge
Slideout gauge allows for 1/4” or 7/16” bend
