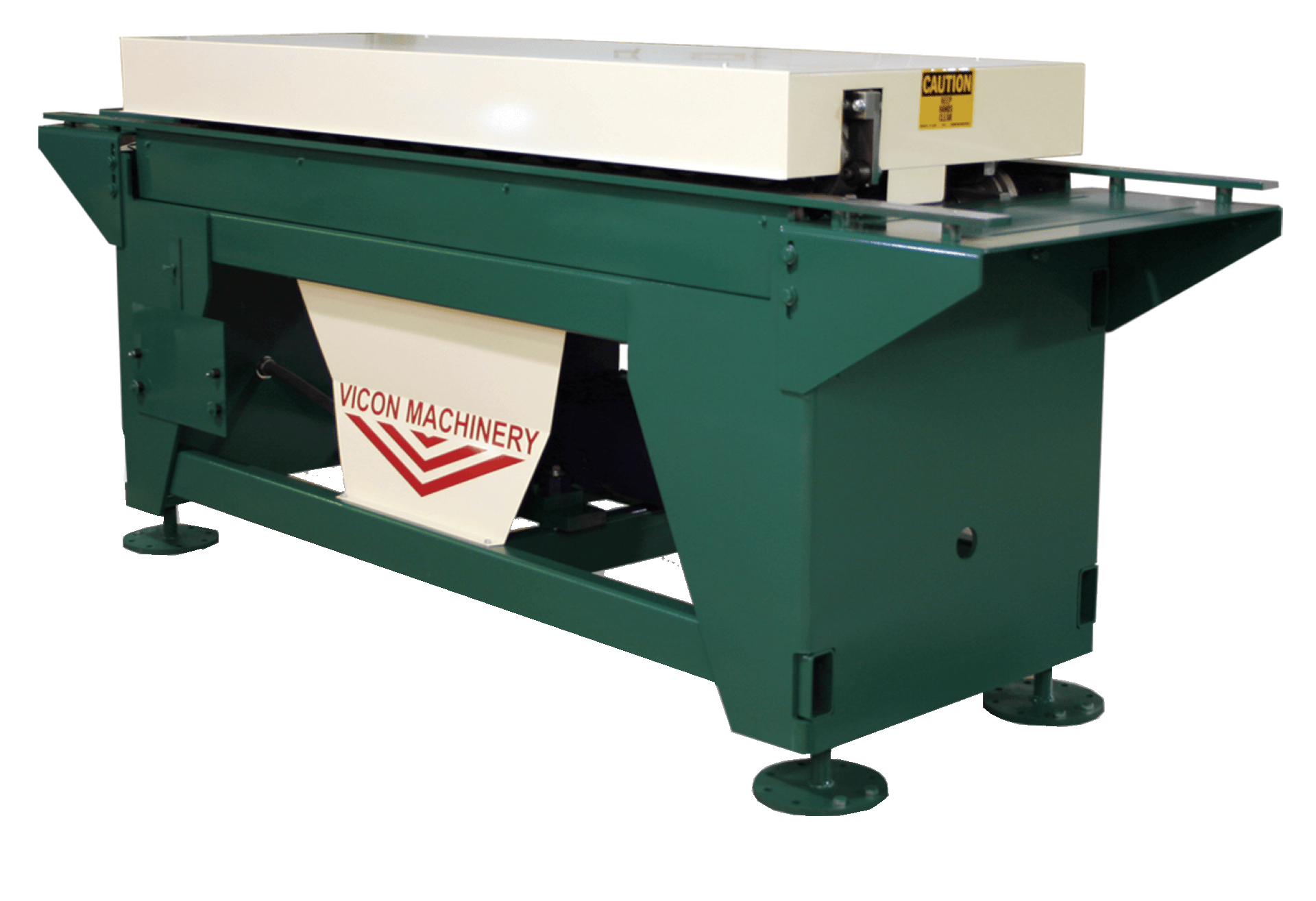

The Vicon TDX-II 12 Station Rollformer is designed to manufacture the T-25a transverse flange (four-bolt) connection. This specific profile has been assessed by the SMACNA Testing and Research Institute and complies with the testing criteria outlined in SMACNA’s HVAC Duct Construction Standards.
The TDX-II Rollformer comes with one set of TDX-II tooling mounted left outboard, and offers optional inboard and outboard roll space for shop-specific needs.
Features & Benefits
| Twelve (12) Forming Stations |
| 18 – 26-gauge Material Capacity – no adjustments necessary between gauges |
| 50 FPM Forming Speed |
| Large, heavy-duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine |
| Slideout shaft design allows for easy maintenance |
| Heavy-duty 1-1/4” diameter stress proof roller shafts |
| Woodruff shaft keys for added strength and precise alignment |
| Hardened infeed guides reduce wear from plasma cut edge |
| 5 HP Motor coupled to industrial oil bath gear reducer for quiet longevity |
| Heavy-duty roller chain drive, no belts |
