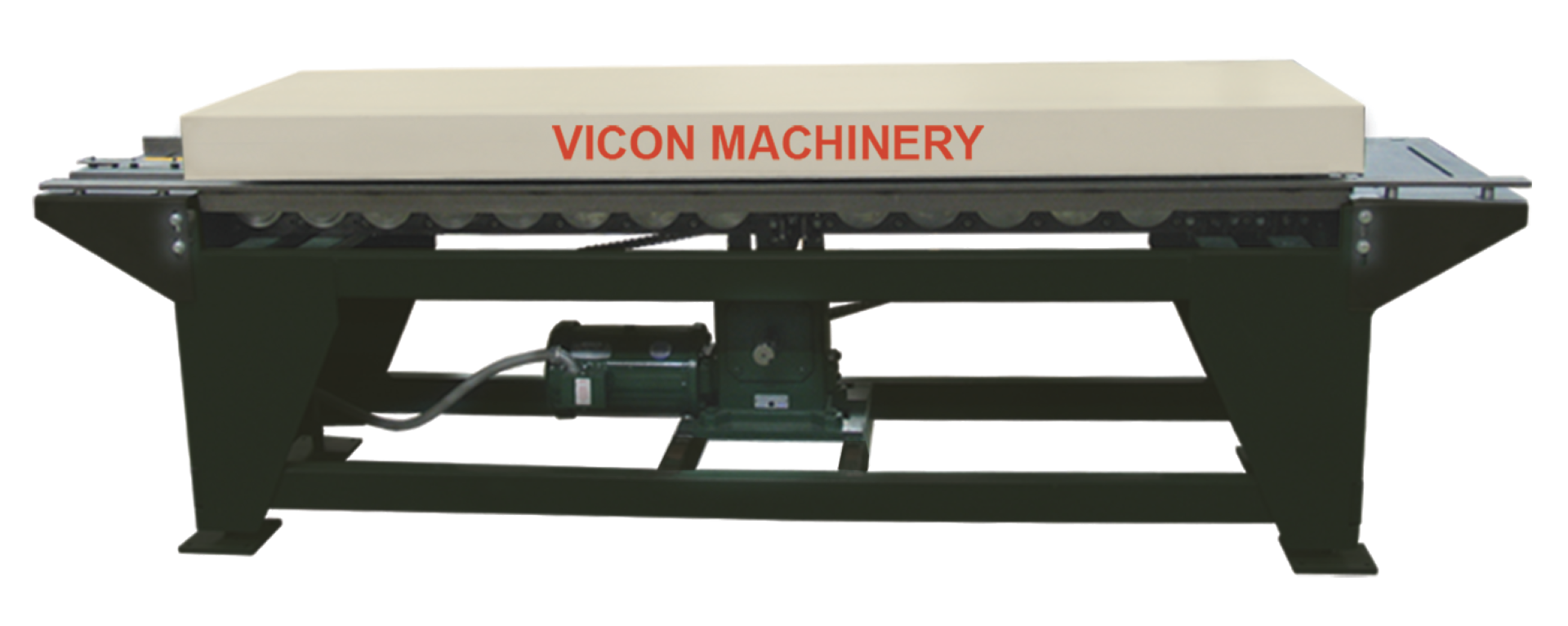

The Vicon TDX 16 Station Rollformer is for producing the T-25b transverse flange (four-bolt) connection. TDX tooling is positioned on one outboard side, with the flexibility to include tooling in the inboard and opposite outboard side to meet specific shop needs.
Features & Benefits
| Profile meets SMACNA's HVAC Duct Construction Standards |
| 18 – 26 Ga. Material Capacity – no adjustments necessary between gauges (16 ga option available) |
| 70 FPM Forming Speed |
| Independent adjustment at each forming station with pre-set spring tension |
| Large, heavy-duty bearings with inner races and grease fittings protect roll shafts and extend bearing life |
| Slideout shaft design allows for easy maintenance |
| Heavy-duty 1-1/4” diameter stress proof roller shafts |
| Woodruff shaft keys for added strength and precise alignment |
| Hardened infeed guides reduce wear from plasma cut edge |
| 7.5 HP Motor coupled to industrial oil bath gear reducer for quiet longevity |
| Heavy-duty roller chain drive, no belts |
