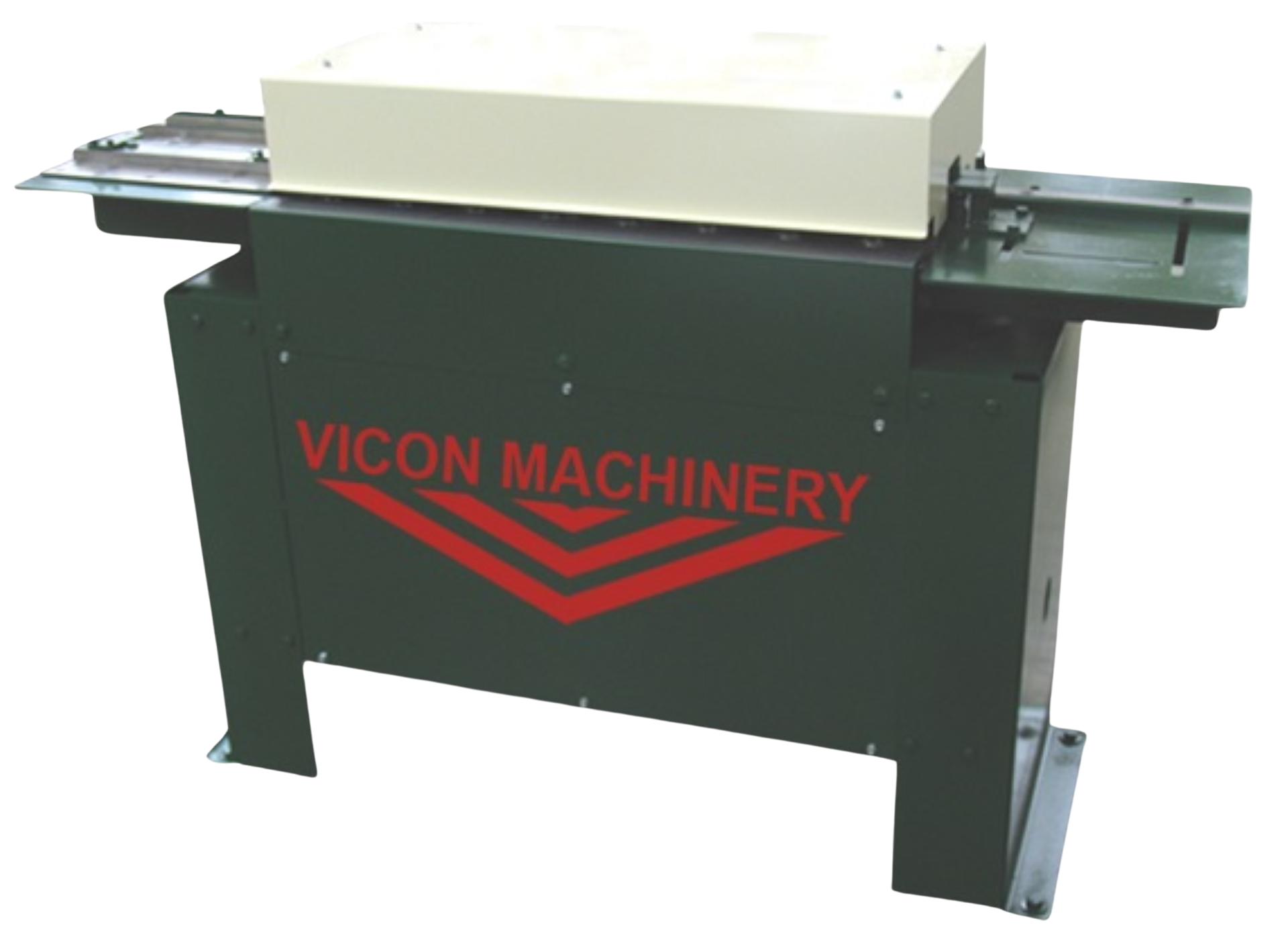

The Vicon V8 Eight-Station Pittsburgh Rollformer can be equipped with Right Angle Flange, 4-in-1, or Acme Lock Rolls. All V8 rollformers create seams that surpass SMACNA standards.
Features & Benefits
| Quietest machine in the industry |
| Eight forming stations for all roll sets - no opening roll on any roll set |
| Large, heavy-duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine |
| Slide out shaft design allows for easy maintenance |
| Heavy-duty 1” diameter stress proof roller shafts |
| Woodruff shaft keys for added strength and precise alignment |
| 5 HP motor coupled to an industrial oil bath worm gear drive for longevity |
| Heavy-duty roller chain drive, no belts |
| Heavy-duty motor starter with thermal protection overloads |

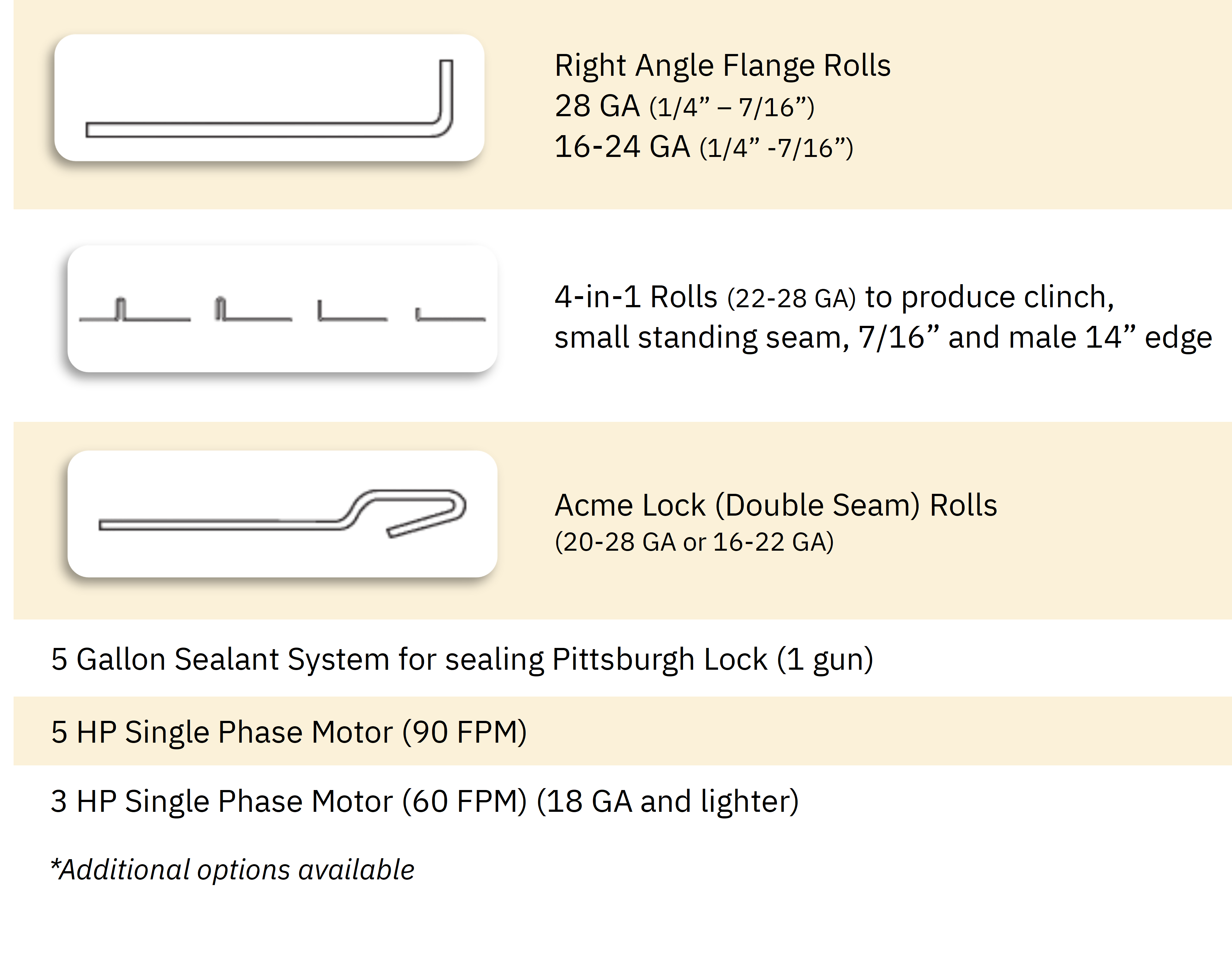

Options
