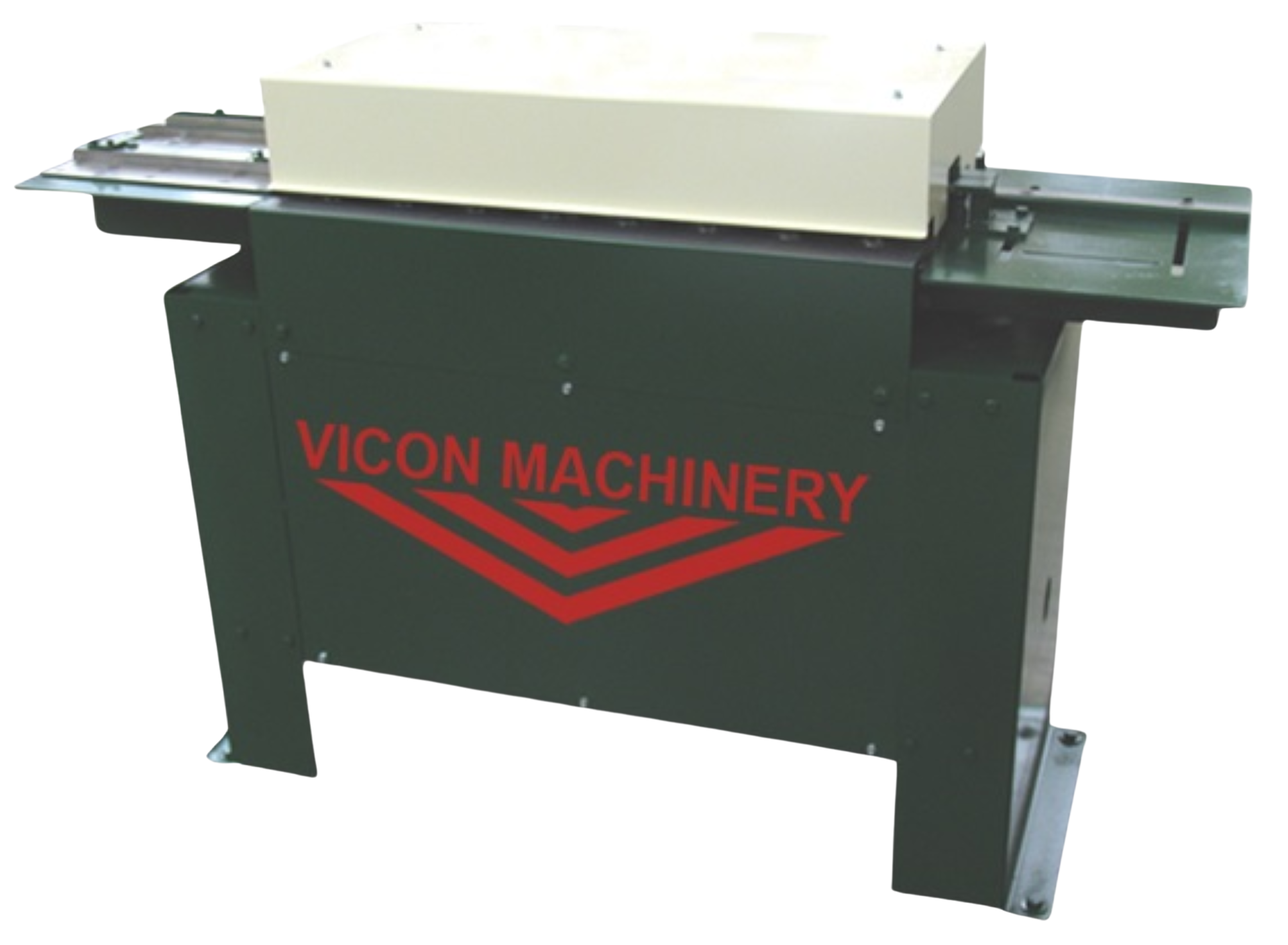

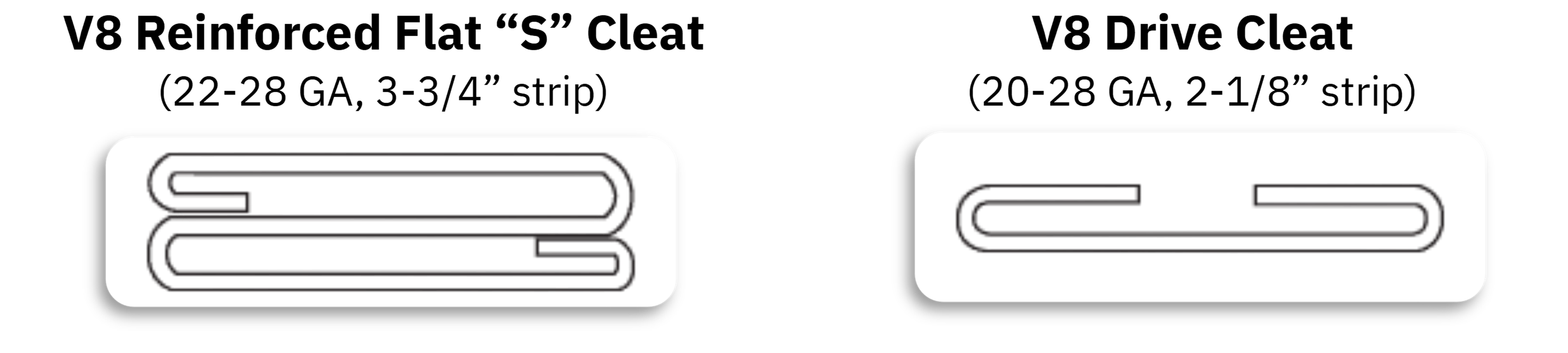

The Vicon V8 Slip & Drive Rollformer produces connections that surpass the SMACNA standards. This eight station rollformer features Flat “S” and Drive Cleat tooling inboard, and can be customized with outboard tooling like Pittsburgh, Snaplock, 4-in-1, or Acme Lock rolls based on shop needs. Additionally, there is an optional high-speed slitter available for producing slips and drives from scrap metal, saving labor and material.
Features & Benefits
| Quietest machine in the industry |
| Eight forming stations for all roll sets - no opening roll on any roll set |
| Large, heavy-duty bearings with inner races and grease fittings protect roll shafts and extend bearing life of the machine |
| Slide out shaft design allows for easy maintenance |
| Heavy-duty 1” diameter stress proof roller shafts |
| Woodruff shaft keys for added strength and precise alignment |
| 5 HP/3 Phase motor coupled to an industrial oil bath worm gear drive for longevity |
| Heavy-duty roller chain drive, no belts |
| Heavy-duty motor starter with thermal protection overloads |
| 90 FPM Pitch Speed |
Options
| HP Single Phase Motor (90 FPM) |
| 3 HP Single Phase Motor (60 FPM) |
| Additional options available |
