Dual Head Corner Insertion Machine

The Vicon Dual Head Corner Insertion Machine is designed to insert and crimp stackable bolt connection corners into straight duct with T25-a or T25-b flanges. This machine can handle ducts of 26 to 16 gauge galvanized in lengths ranging from 32” to 56” with quick and simple adjustments. It stands out as the most dependable and durable machine on the market

Features & Benefits

26 to 16-gauge mild steel capacity
Duct length capacity 32” - 56”
Heavy-duty tubular frame structure design
No tools required for changing duct lengths
Available tooling for T25-a or T25-b corners
Duct connector types TDX®, TDC®, TDF®
Compatible with most brands of stackable corners
Auto or manual control functions
Operator friendly sensor indicator lights for efficient duct insertion
Low corner quantity alarm sensor, eliminates crimping without the corner
Voltage 110/1/60 Hz
Air requirement: 100 PSI
Optional six-foot capacity machine available
Pit dimensions provided upon request

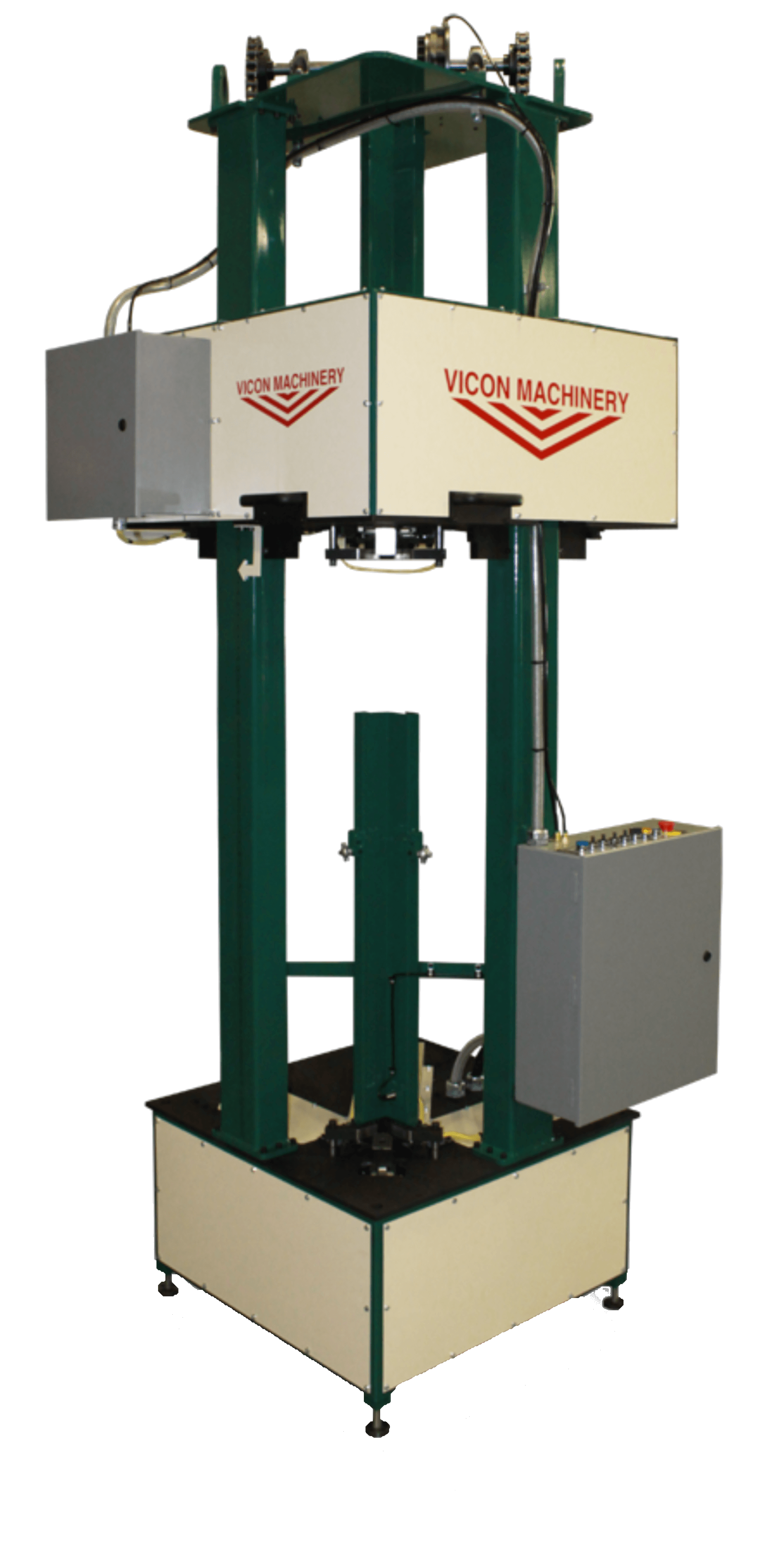

VICON Dual Head Corner Insertion Machine
DUAL HEAD CORNER INSERTION
Brochure
DUAL HEAD CORNER INSERTION
