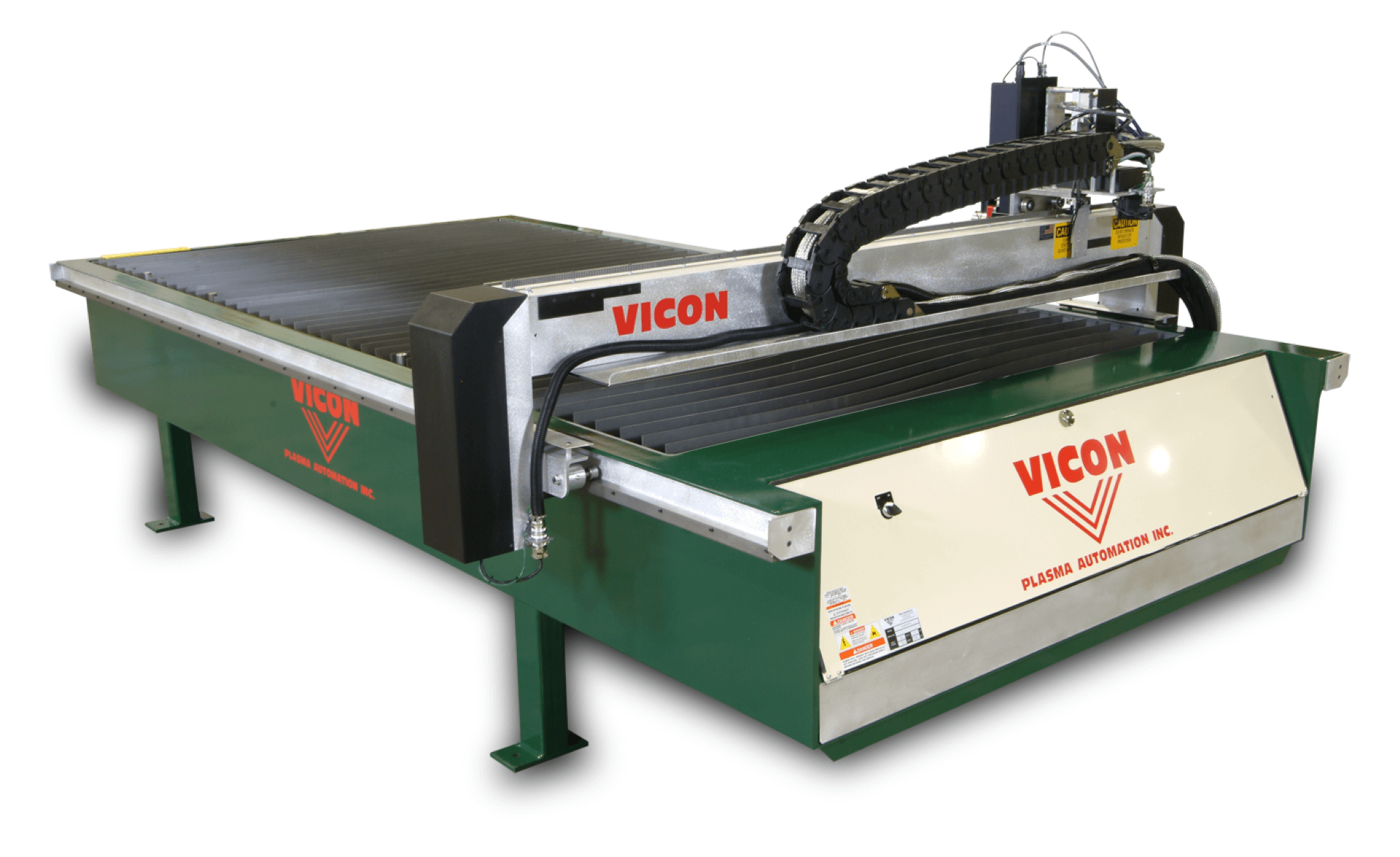

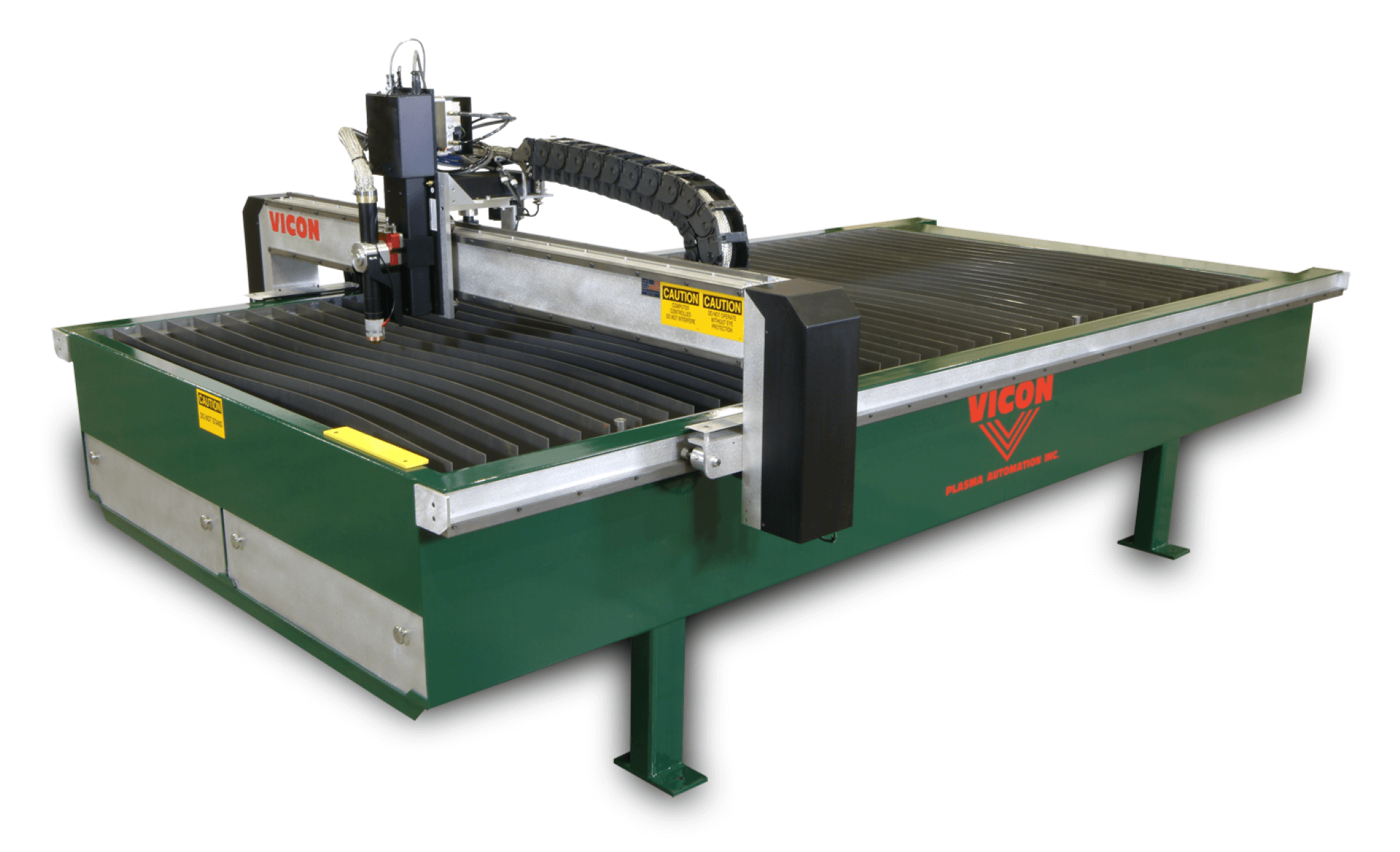

Vicon Fabricator-SS: Precision & Efficiency for Fabrication and Job Shops
The Vicon Fabricator-SS is a durable and versatile plasma cutting machine, designed for efficient fabrication and job shop applications. With its fast, precise, and clean CNC cutting, it reduces waste and operational costs, maximizing productivity and profitability.
Advanced Motion Control & Electronics
Solid-state controls and digital drives ensure fast response times and precise cutting. Non-contact proximity sensors protect the drivetrain while maximizing production speed, and CAT-5 communication cables provide reliable connectivity between the PC controller and digital servo drives.
Customizable Plasma Cutting Solutions
The Vicon Fabricator-HD accommodates a variety of plasma systems, capable of cutting materials from light gauge to heavy plate. Our Vicon experts help tailor the system to your specific cutting needs, ensuring the right torch technology for your application.
Torch Height Control & Collision Protection
Optional electronic torch height control maintains optimal cutting height for improved cut quality. A collision protection device safeguards the torch from damage, reducing downtime and maintenance costs.
Vicon Fabrication Cutting Software: Power & Simplicity
The Vicon Fabrication Cutting Software offers a user-friendly, menu-driven interface, continuously updated by Vicon’s in-house engineers. Features include:
✔ Full shape libraries with user-defined options
✔ Super Nesting & common line cutting for material efficiency
✔ DXF file import with Auto Kerf & Auto Lead-In
✔ Integrated CAD sketch program for streamlined design
The Vicon Fabricator-SS is built to optimize workflow, reduce costs, and deliver superior plasma cutting performance.
Features & Benefits
| Standard 5' x 10' cutting areas with options for up to 10' x 40' |
| Highly affordable for high quality, clean edge applications |
| Torch choice flexibility for cutting various metals from gauge to 1-1/4" plate |
| Carriage capacity - two tooling stations to accommodate various cutting applications |
| High-speed dual drives enable traversing speeds of more than 2,000 ipm |
| Precision linear guiding on the X and Y axis enables superior clean edge quality using a precision plasma power source |
| X- axis consists of one linear guide with two rigid recirculating ball bearing guide cars. Y-axis linear guiding consists of four rigid hardened Vee roller guides |
| State-of-the-Art proximate switches and customized table stops allow for easy diagnostics, trouble-free operation, and optimum performance for the life of the machine |
| PC Control with Vicon Fabrication Cutting Software enables the programming, loading of new jobs and editing to be done at the machine while it is operating |
| On screen status provides efficient control and easy diagnostics |
| Customized table stops allow for custom fixturing of parts |
