HVAC 1.5kw Laser Cutting System

This rugged yet flexible laser cutting machine is the solution for the optimal processing of HVAC duct fittings. Fast, clean and accurate, this CNC cutting system drastically reduces waste material and operating costs resulting in greater profitability.

Exclusive dual rack and pinion drives provide superb positioning accuracy for unmatched part quality. Material stops guide the operator for loading sheets eliminating error and material waste.

Features & Benefits

Standard 5' x 10' cutting area with options for up to 5' x 20' cutting area to accommodate various shop requirements
1500-Watt Raycus Fiber Laser Power Supply
Computer Controlled Auto Focus Cutting Head (Switzerland Raytools AG)
Vicon Programmable Capacitive Laser Height Control
State-of-the-Art PC Control with Vicon HVAC Cutting Software enables the programming, loading of new jobs and editing to be done at the machine while it is operating Heavy-duty one-piece steel frame cutting table
Light-weight aluminum gantry, double rack and pinion drive with dual high-speed digital motors
Traversing speeds up to 2,000 IPM

Options

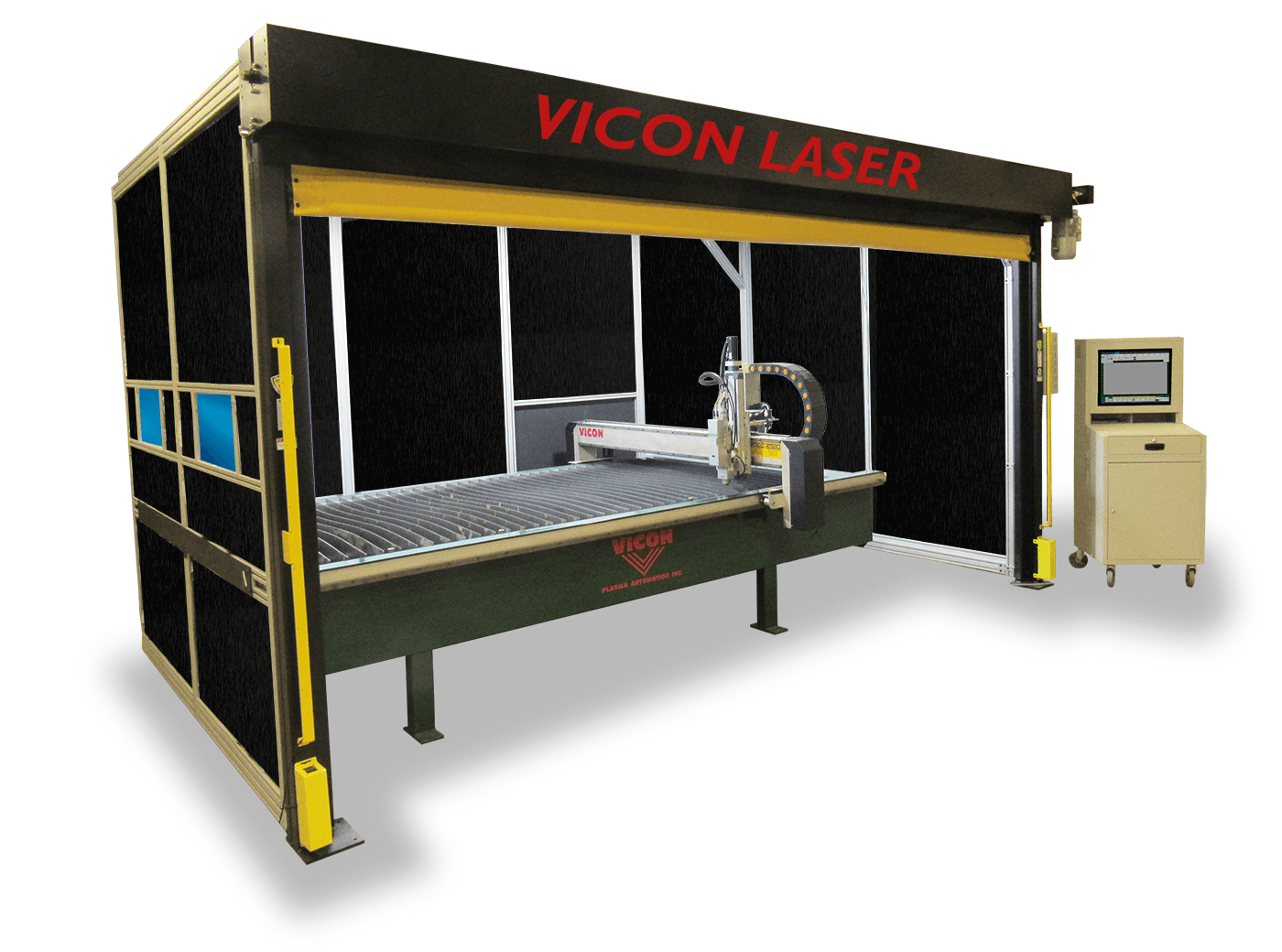

Safety Enclosure: protects operators from application hazards while restricting access of machine operation with safety rated controls and viewing windows.

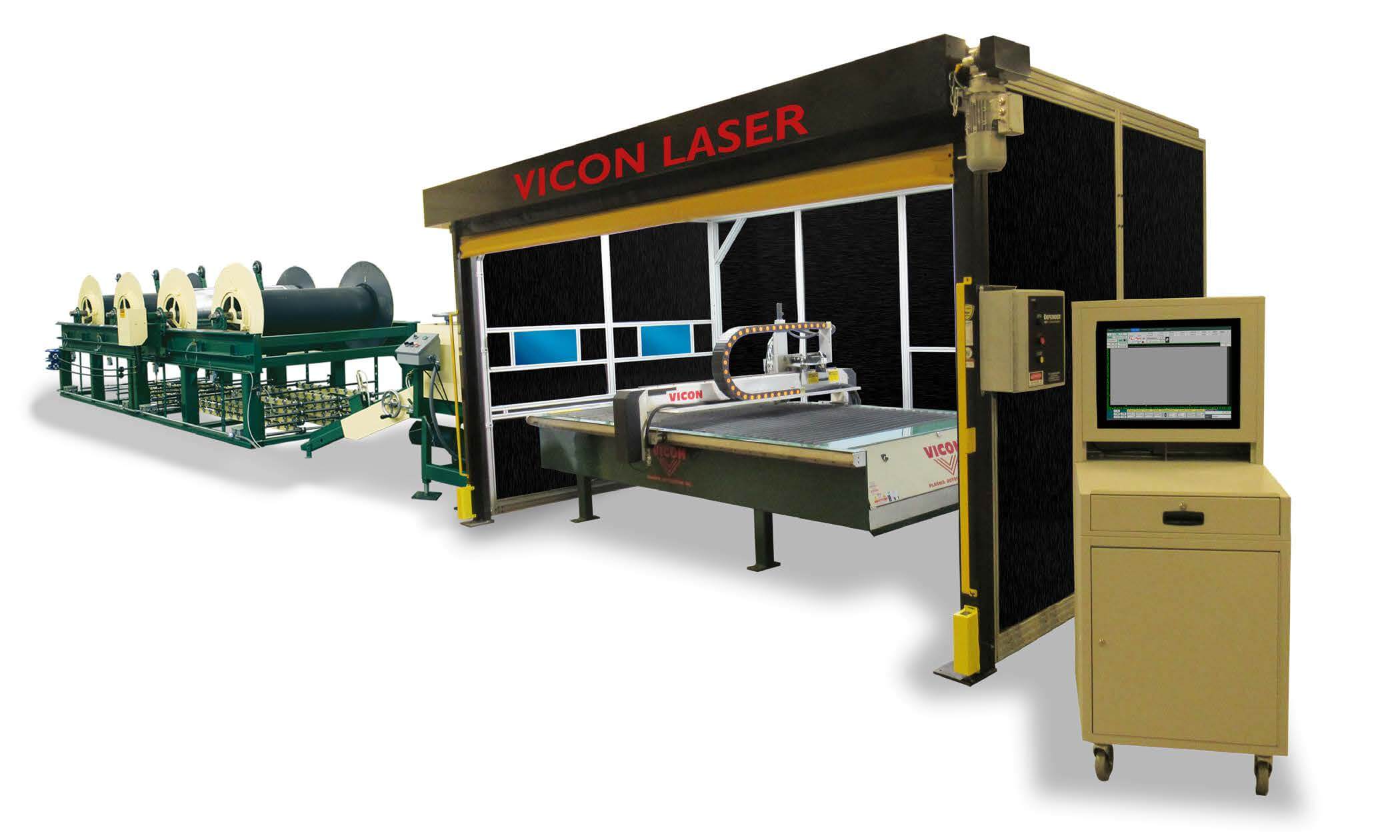

Coil feed Capability
Download interface from most CAD/CAMsoftware programs
Office programming system including PC, software, LAN cable and hub
State-of-the-Art PC Control with Vicon HVAC Cutting Software enables the programming, loading of new jobs and editing to be done at the machine while it is operating
HVAC 1.5kw LASER
Brochure
HVAC 1.5kw LASER
