HVAC 520DL

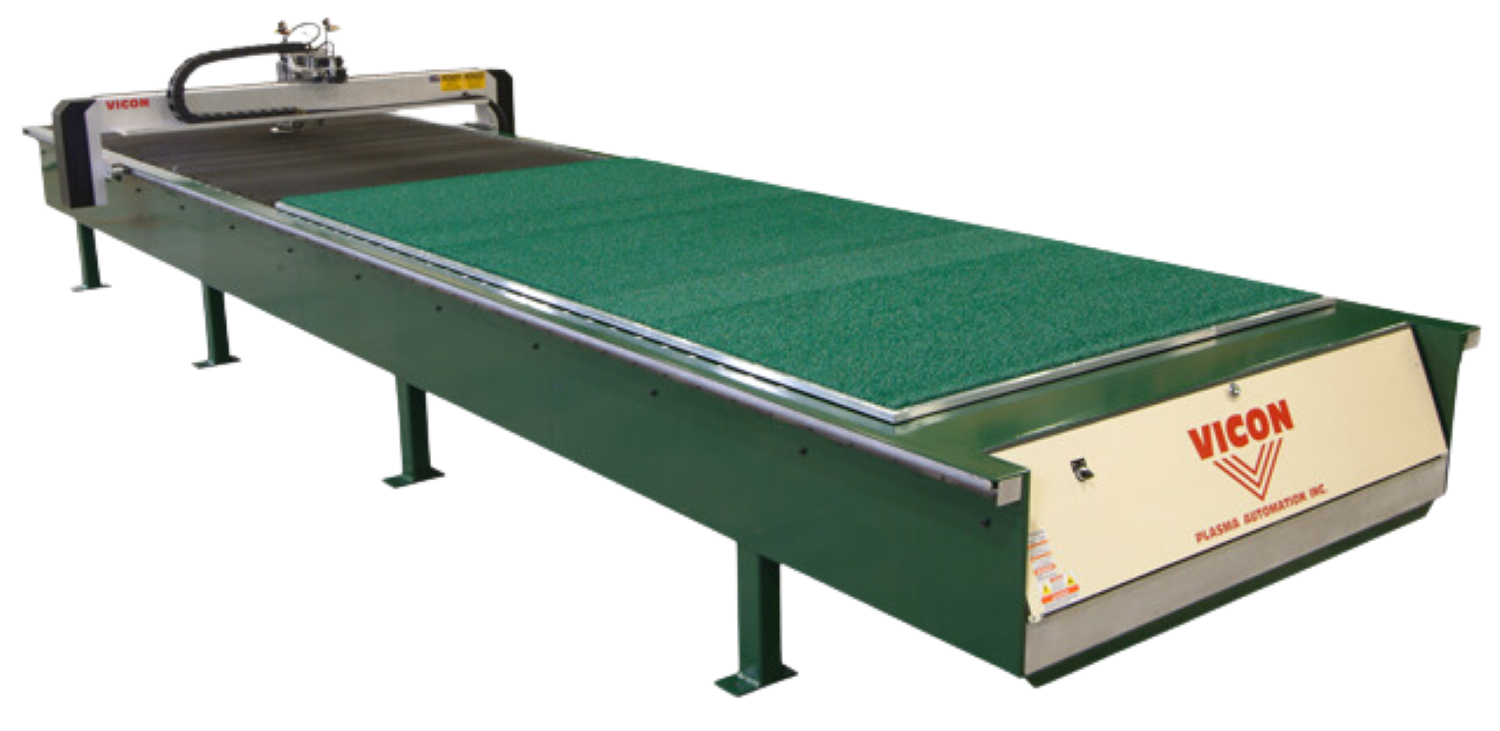

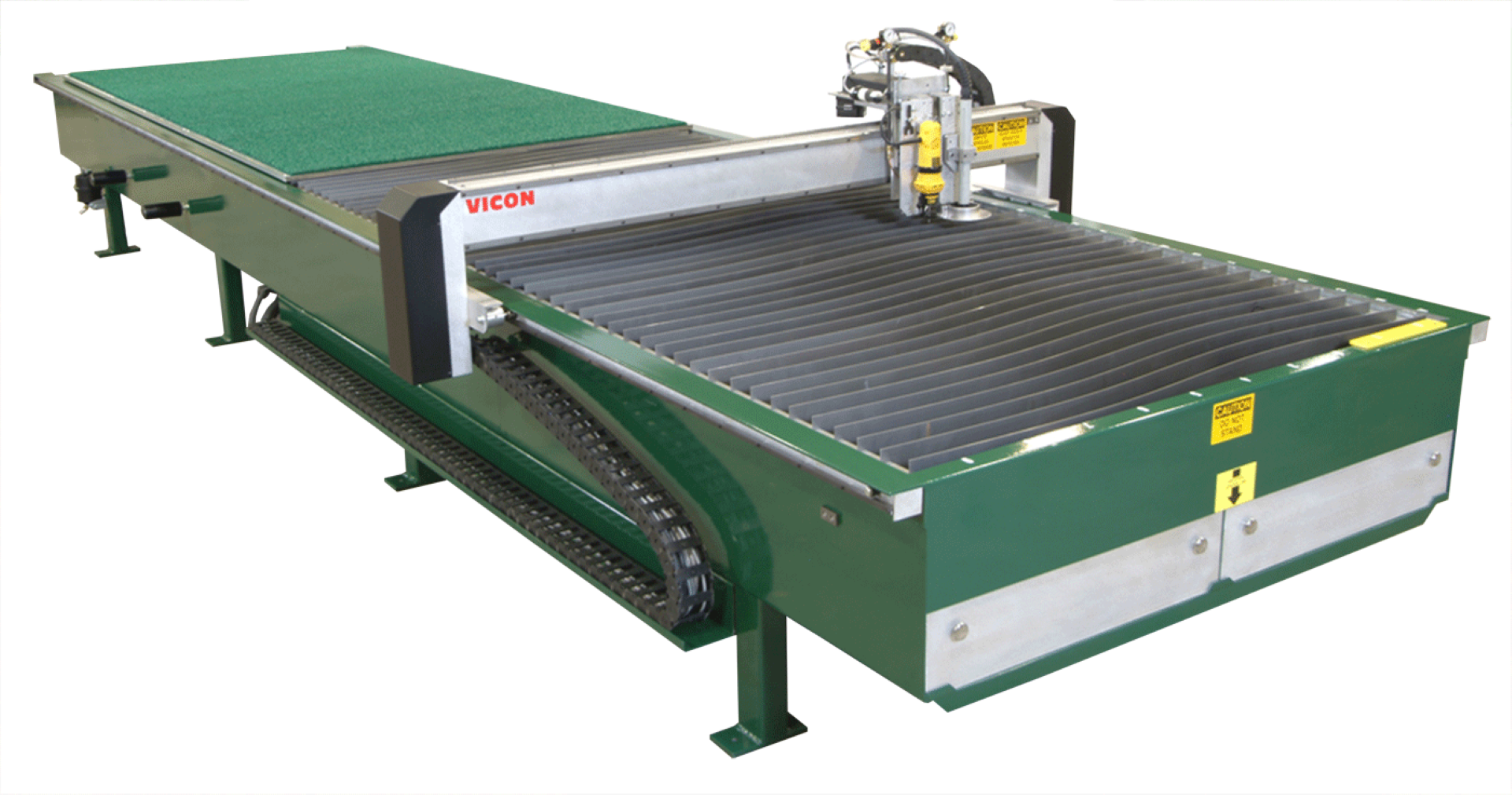

VICON Liner Cutting Systems save considerable time and cost by eliminating labor-intensive manual liner cutting. The VICON patented, fully automated duct liner cutting process is clean, dry, fast, smokeless, and accurate. In addition, liner waste is greatly reduced, increasing shop profitability. The HVAC 520 DL provides maximum versatility offering users the ability to cut either sheet metal or liner without any set-up. Cut your metal on bed one and your liner on bed two, or the machine can easily be converted to cut metal or liner on the entire 20’plus cutting area. Also available as a 5’ x 10’ table if space for a 5’ x 20’table is a concern.

Features & Benefits

Standard 5' x 20' cutting area
Patented system equipped with a synthetic surface. The router assembly holds and cuts duct liner smoothly and efficiently (US Patent No. 6,540,456)
State-of-the-Art electronics incorporating high speed motors capable of traversing at a maximum 2000 ipm resulting in faster part production
Rigid, extruded aluminum gantry results in “low inertia” producing highly accurate parts, sharp corners and notches
Dual rack and pinion drives provide greater positioning accuracy
Non-lubricating gears and bearings
State-of-the-Art PC Control with Vicon HVAC Cutting Software enables the programming, loading of new jobs and editing to be done at the machine while it is operating
On screen status control provides efficient control and easy diagnostics

HVAC 520DL Specifications

Effective Cutting Area 5' x 20' (standard)
Material Capacity 28-gauge to 1/2" thick plate
Machine Dimensions 288" x 90" x 35"

Options

High-speed cutting feature
Download interface from most CAD/CAM software programs
Office programming system including PC, software, LAN cable and hub
Vicon ViSoft Value Added Software Modules
Industrial grade PC Control cabinet
HVAC 520 DL
