Vicon Monarch: Heavy-Duty Precision & Versatility

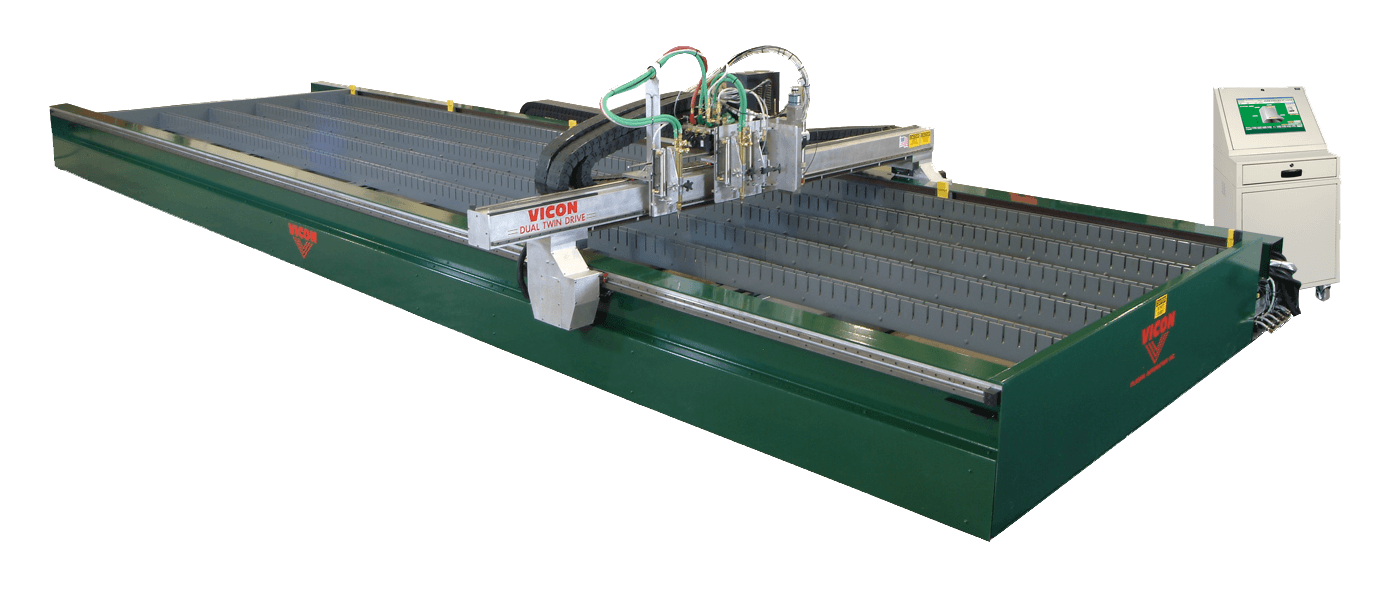

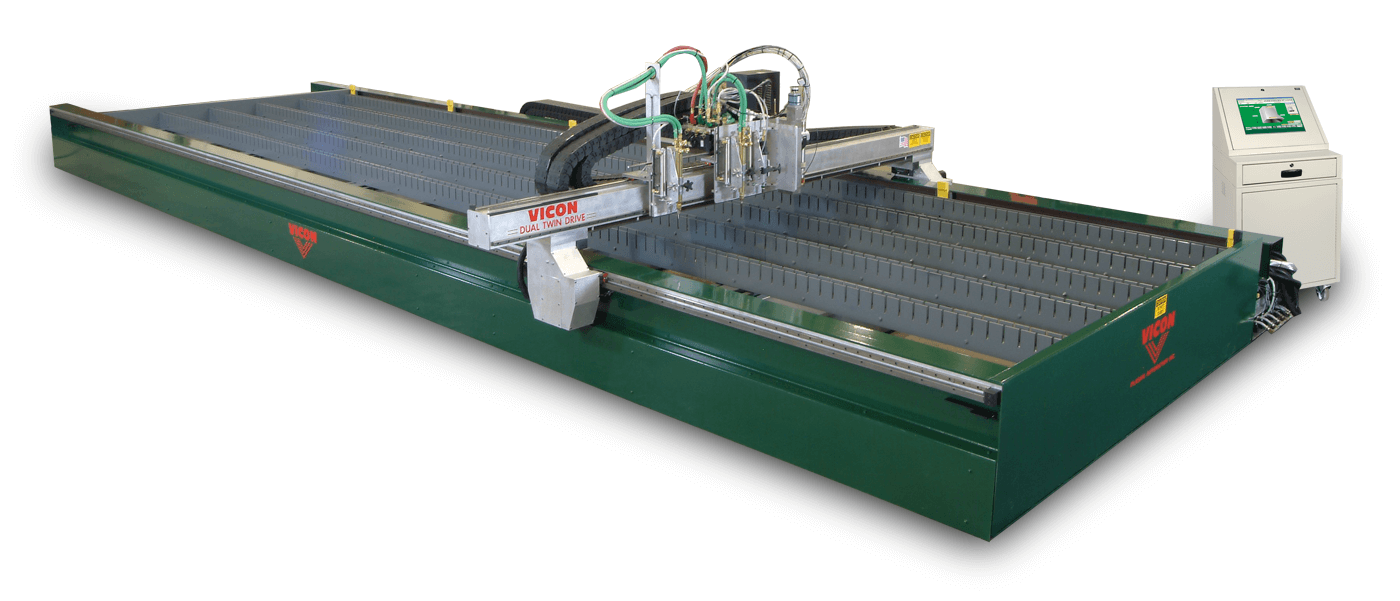

The Vicon Monarch is a high-precision, heavy-duty CNC plasma cutting machine built for accuracy and versatility. Dual precision worm gear drives with digital motors ensure smooth, precise movement of the rigid aluminum gantry, delivering superior edge quality.

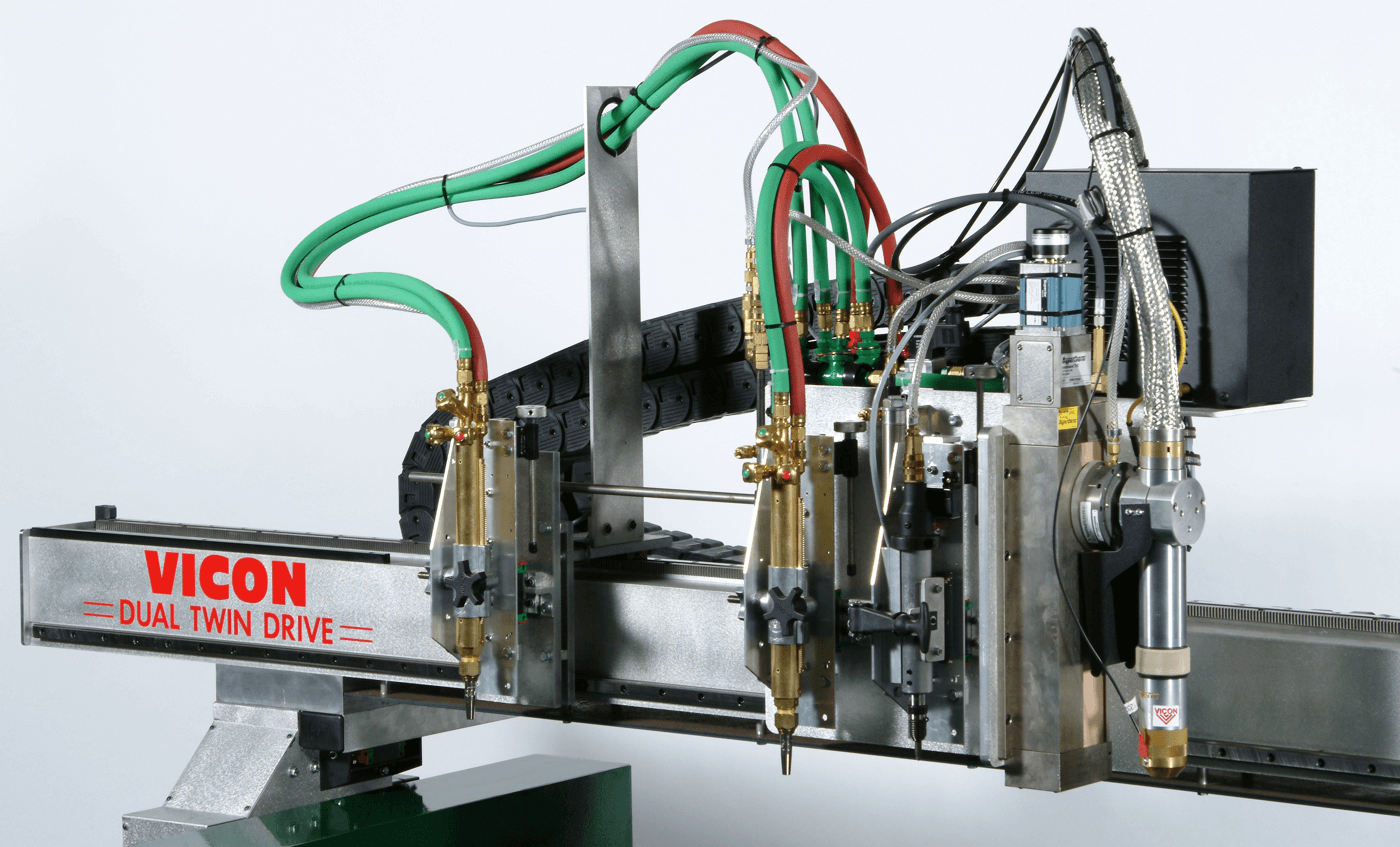

Designed for multi-process cutting, the gantry supports plasma torches, oxy torches, scribing tools, and drill heads. Features like built-in material stops, cleanout panels, and machine status panel ensure reliable, long-term performance.

With its rugged I-beam construction, the Monarch handles sheet metal, thick plate, structural steel, I-beams, angle iron, tubing, and more, making it the ultimate solution for high-end precision cutting.

Advanced Motion Control & Electronics

Solid-state controls and digital drives ensure fast response times and precise cutting. Non-contact proximity sensors protect the drivetrain while maximizing production speed, and CAT-5 communication cables provide reliable connectivity between the PC controller and digital servo drives.

Customizable Plasma Cutting Solutions

The Vicon Monarch accommodates a variety of plasma systems, capable of cutting materials from light gauge to heavy plate. Our Vicon experts help tailor the system to your specific cutting needs, ensuring the right torch technology for your application.

Torch Height Control & Collision Protection

To maximize efficiency, the Vicon Monarch offers your choice of electronic torch height control, ensuring precise cutting height during piercing and cutting for superior cut quality. Additionally, a collision protection device safeguards the torch from damage in case of material impact.

Automatic Controlled Multiple Zone Exhaust System

The automatic controlled multiple zone exhaust system effectively removes plasma fumes from CNC plasma machines by using linear exhaust plenums. It features machine-controlled exhaust damper valves that open during cutting, minimizing the air volume drawn. This zoning system enables the use of a smaller dust collection unit when integrated with a dust collection system.

Vicon Fabrication Cutting Software: Power & Simplicity

The Vicon Fabrication Cutting Software offers a user-friendly, menu-driven interface, continuously updated by Vicon’s in-house engineers. Features include:

✔ Full shape libraries with user-defined options

✔ Super Nesting & common line cutting for material efficiency

✔ DXF file import with Auto Kerf & Auto Lead-In

✔ Integrated CAD sketch program for streamlined design

The Vicon Monarch is built to optimize workflow, reduce costs, and deliver superior plasma cutting performance.
