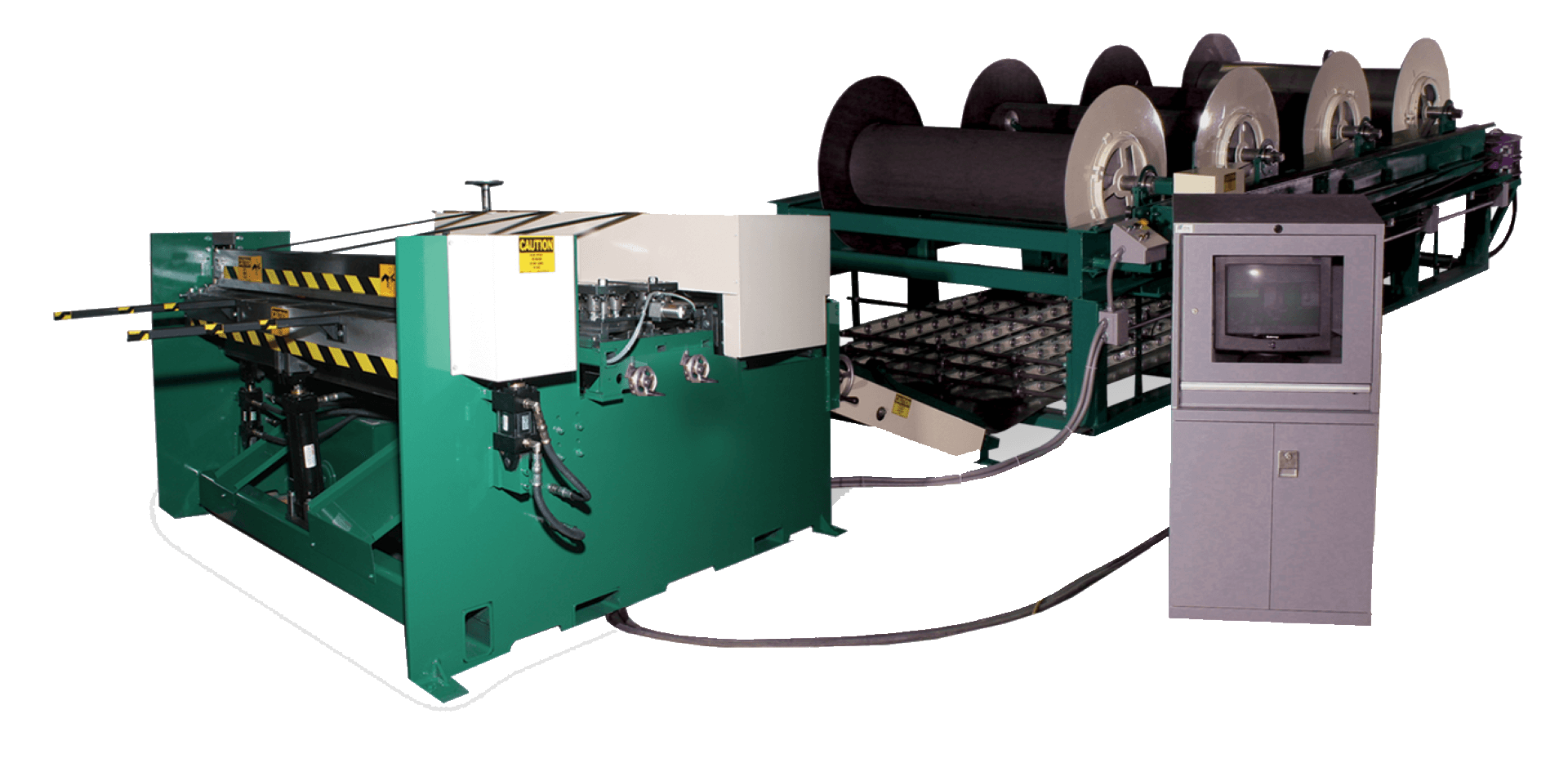

The Vicon Shear & Bend offers a practical solution for shop needs, featuring a patented coil cradle system, ramp, straightener unit, beader, notching unit, and heavy-duty shear and bending unit. The Full Coil line can be easily completed with additional modular VICON coil line components.
The Vicon Coil Cradle System simplifies coil loading with a lightweight, removable keeper end plate for easy one-person attachment.
Powered by Vicon Coil Line Software for Windows®, the Shear & Bend offers a user-friendly interface configurable to SMACNA standards or customized to your shop. Backed by Vicon’s expert engineers, it ensures precision, efficiency, and seamless operation.
Features & Benefits
| Pneumatic back-up wheels at each coil station for safe band removal and positive coil feed |
| Robust, gear-driven four roll straightener with 4” diameter rolls |
| Heavy-duty notching unit with combination dies to provide Slip & Drive, TDX, Snaplock and Pittsburgh notch patterns |
| Dual hydraulic cylinder shear with high carbon, high chrome D-2 shear blades. Fully adjustable heavy duty gibs allow for independent blade gap adjustment. Heavy-duty torsion synchronization shaft ensures proper shear angle throughout the stroke |
| Rugged bending unit to form the male Pittsburgh edge as well as either an L-section, U-section, or full wrap. |
| VICON PC based control system capable of controlling the complete system |
| Ring type beading with SMACNA spacing |
| Hands-free coil feed |
| 16–30-gauge mild steel capacity |
| 12,000 lbs. maximum coil capacity (with coil drive) |
| Coil widths from 48”- 60” standard |
| Number of Stations: 1-6 |
| Quick-change coil spools (US Patent #7,673,915) |
| Individual Hydraulic coil drive motors |
| Powered in-feed guide ramp with hand wheel for change in coil widths |
| Approximately 70 fpm line speed |
|
* Optional capacities available upon request |
Options
| 72” coil capacity |
| Precision, high-speed servo system |
| Tie rod hole punch unit Model HP-5 provides tie rod and damper holes per SMACN standards or customized to your shop standards |
| Male button punch system for Snaplock male edge |
| Economical overfed coil cradle systems for smaller overall footprint |
