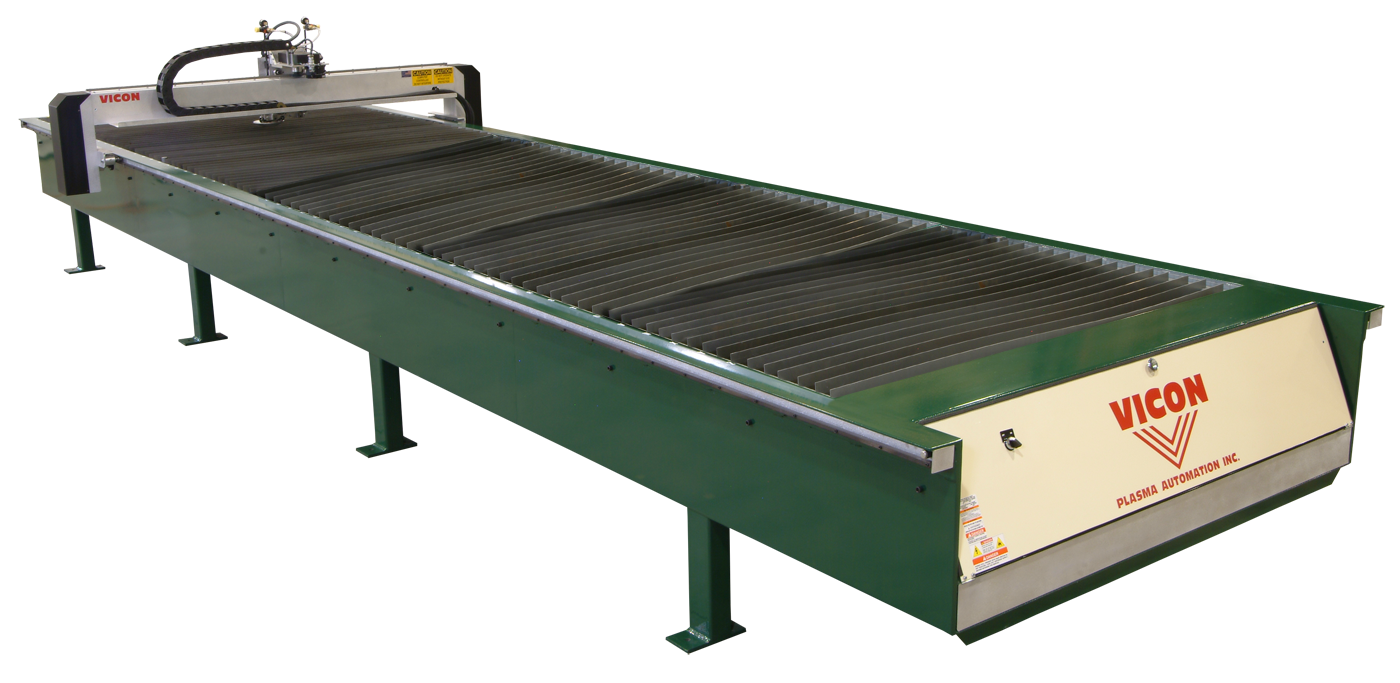

HVAC 520 Plasma Cutting Table

Double Table Sheet Metal Cutting System

Increase your productivity by at least 40% over the Model 510 with the Vicon 520 Double Table Plasma Cutting System! This system offers all of the same features and benefits as the standard Vicon 510 system... and more!

Finished parts are unloaded at one end of the machine while you continue cutting on the other, resulting in faster job completion.

Features & Benefits

Flexibility to cut two 10' sheets or single sheets up to 22'
Ideally suited to fully integrate with the Vicon Plasma Coil Feed System
Standard 5' x 10' cutting area with options for up to 6' x 20' cutting area to accommodate various shop requirements
Rugged drives are sized for minimizing system wear and tear while providing peak performance
All aluminum, low inertia gantry produces highly accurate parts and sharp corners and notches
One piece down draft table including built-in automatic CNC controlled exhaust fan circuit which is only on during cutting
State-of-the-art PC controller with color monitor for machine-side viewing of parts being processed
On screen status control provides efficient control and easy diagnostics
Traversing speed up to 2,000 inches per minute
Non-lubricating gears and bearings

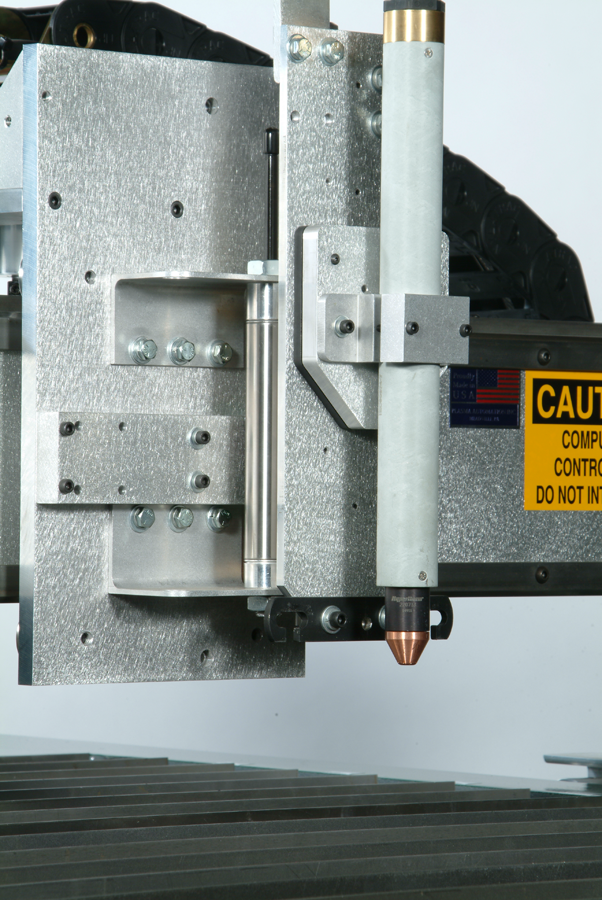

Torch choice flexibility for cutting a variety of materials from 28 gauge up to 1/2" plate

Specifications
Effective Cutting Area	(Standard) (Optional)	5'x20' 6'x20'
Material Capacity		28 gauge to 1/2" thick plate
Machine Length		288"
Machine Width	(Standard) (Optional)	90" 102"
Table Height		35"

Machine Justification Calculator
Click on the calculator to the left to view how quickly the HVAC 520 pays for itself and starts making a profit.

Available HVAC Software
Click on the screenshot to the left to view available software for the HVAC line of plasma cutting machines.
