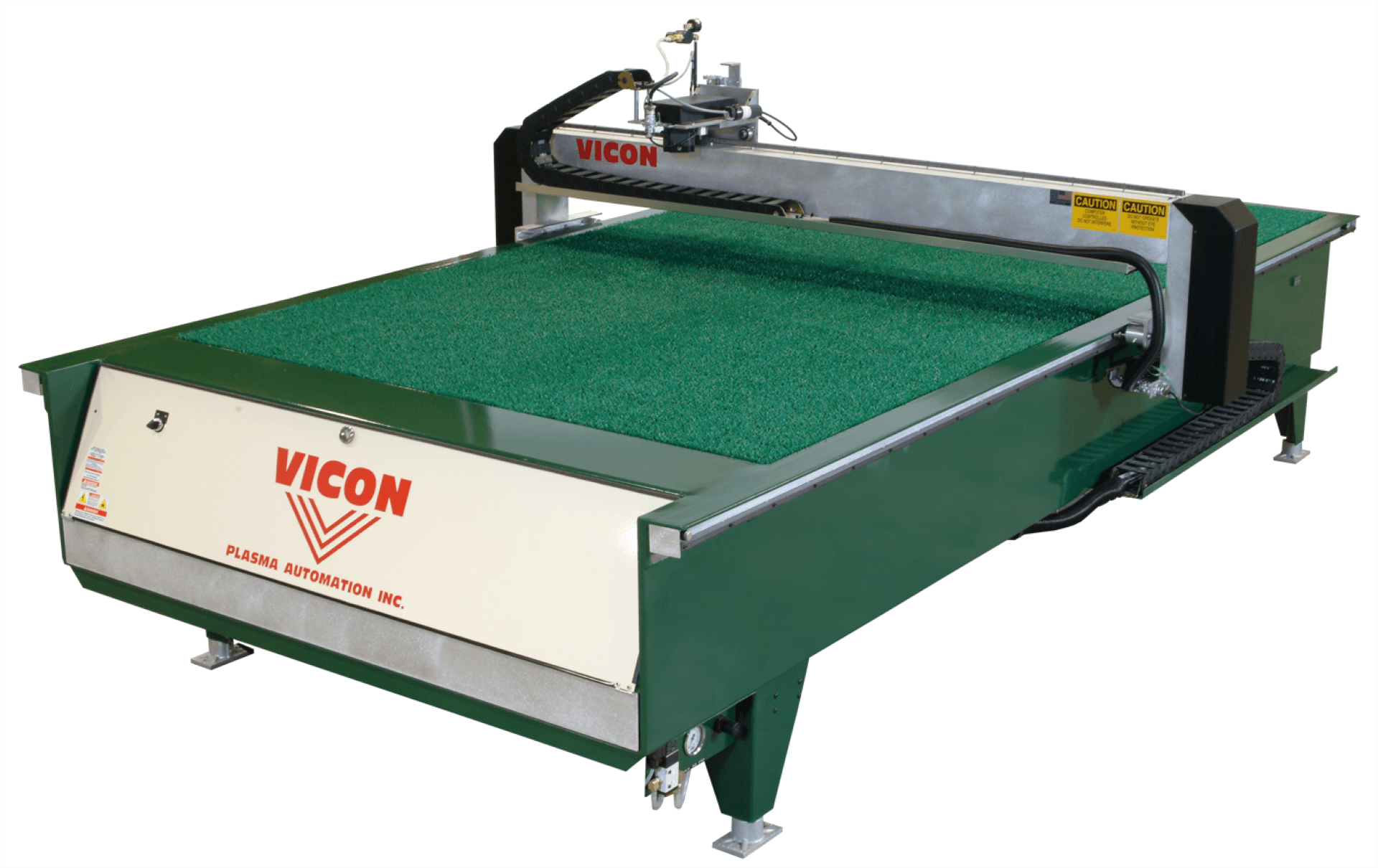

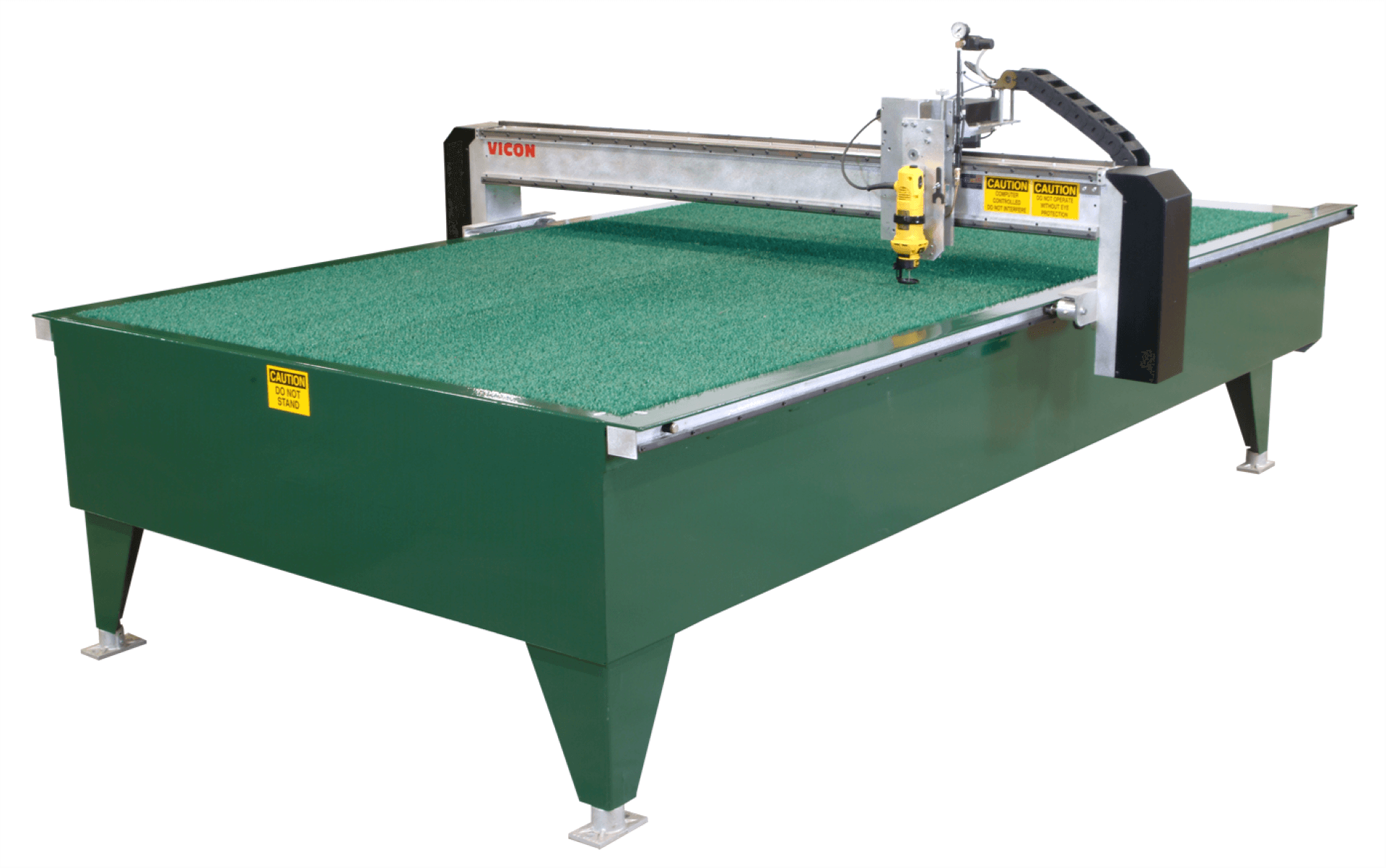

HVAC 510SL

Vicon Liner Cutting Systems save considerable time and cost by eliminating the labor-intensive manual liner cutting. The new Vicon patented process automates duct liner cutting, making it clean, dry, fast, smokeless and accurate. In addition, liner waste is greatly reduced, adding to the increased profits.

REDUCE PROGRAMMING TIME!

All liner cutting machines include the latest Vicon HVAC Cutting Software Program, which is developed and maintained by our experienced team of dedicated in-house programmers. This Windows® based, menu driven program is user friendly and easy to learn. Full Rectangular, Round, Oval and Geometric Parts libraries as well as the powerful Vicon CAD program are included. This software can download job data to and from other controller software, and it is fully compatible with the optional touch screen monitor.

OPTIMIZE WORKFLOW!

With the patented Bar Code Scanning option, sorting problems are a thing of the past. Coordinating the flow of sheet metal and duct liner through the shop is made much simpler and faster. Sheet metal parts are scanned, and the machine is automatically programmed to produce the corresponding downsized duct liner. Superior true-shape nesting minimizes waste.

Features & Benefits

Economical, stand-alone machine dedicated to cutting duct liner in low and high-volume shops
For users with existing plasma cutting systems that need additional liner cutting capability
Available in table sizes: 5'x10', 5'x20', 6'x10', 6'x20'
Patented systems to hold and cut duct liner. (Patent # 6,540,456)
State-of-the-Art PC Control with Vicon Cutting Software enables the programming, loading of new jobs and editing to be done at the machine while it is operating
Synthetic table surface for smooth liner cutting
Dual rack and pinion drive on both axes for greater positioning accuracy
Aluminum gantry results in "low inertia" for greater part accuracy
Roller guides on both axes for greater rigidity, stability and accuracy
Traversing speed up to 2,000 ipm
Non-lubricating gears and bearings

HVAC 510SL Specifications

Effective Cutting Area 5' x 10' (standard)
Material Capacity 28-gauge to 1/2"thick plate
Machine Dimensions 144" x 90" x 35"

Options

Download interface from most CAD/CAM software programs
Office programming system including PC, software, LAN cable and hub
Vicon ViSoft Value Added Software Modules
Industrial grade PC Control cabinet
