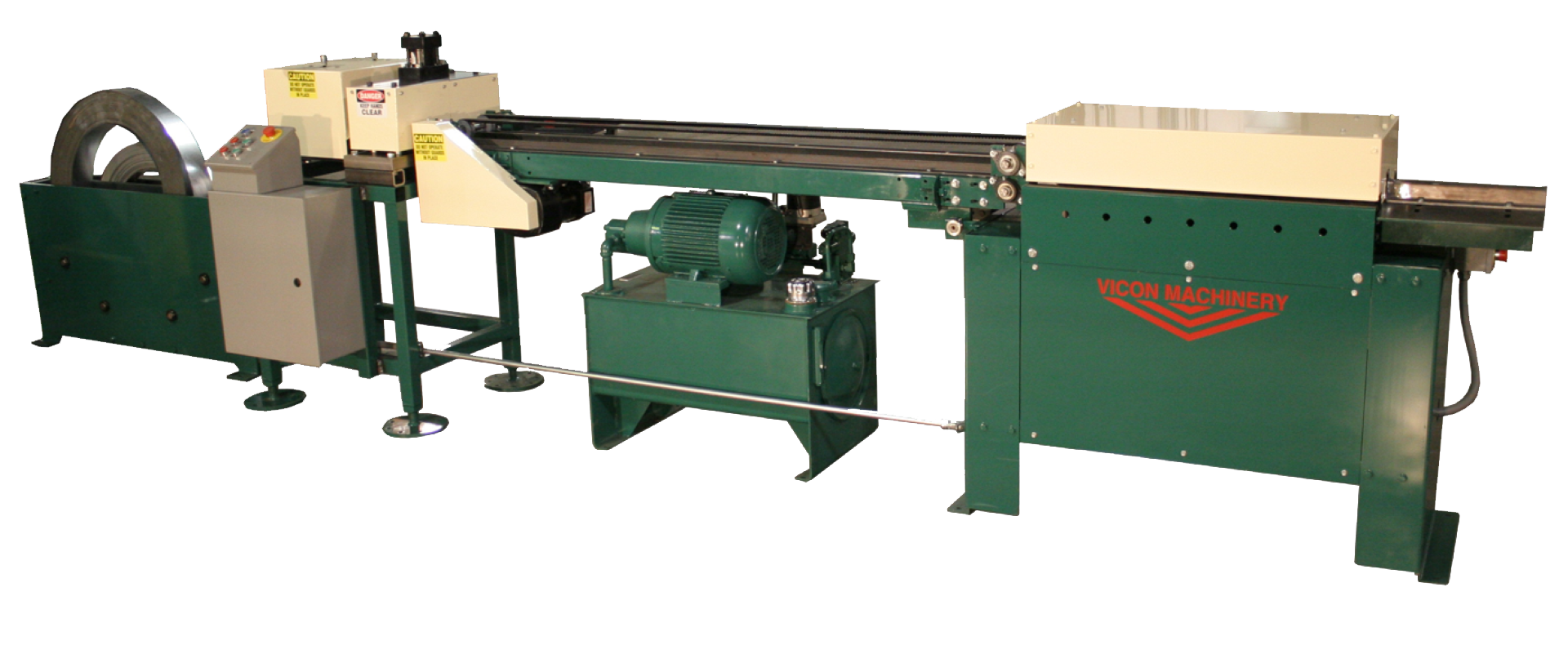

The Vicon Coil Strip Feed Line offers various configurations for producing different profiles. It uncoils, straightens, and cuts the coil metal stock before or after the rollform machine, depending on the specific application. The Vicon PC Control ensures precise finished parts and can be synchronized with the Vicon office program.
The coil cradles and machine guides are set up to pre-align the material, reducing setup time. Vicon also has the capability to manufacture coil strip feed lines for producing single wall turning vanes for elbows.
Features & Benefits
| Dual Drop in style Uncoiler shown. Other types of decoilers available |
| Vicon PC Cut-to-Length Control |
| Hydraulically driven three (3) roll straightener with additional entrance and exit pinch rolls |
| Hydraulic Press with straight shear or contoured dies |
| Hole Punch available |
| Hydraulic Power Unit |
| Length tolerance of ± 1/16” |
| 60" Dual Transfer Conveyor supports blanks during the shearing process and feeds blanks up to 60" long into the rollformer |
| Tooling profile will determine the required rollformer and processing speeds. |
Options
| 120" Dual Transfer System |
| Microprocessor multi-batch controller |
