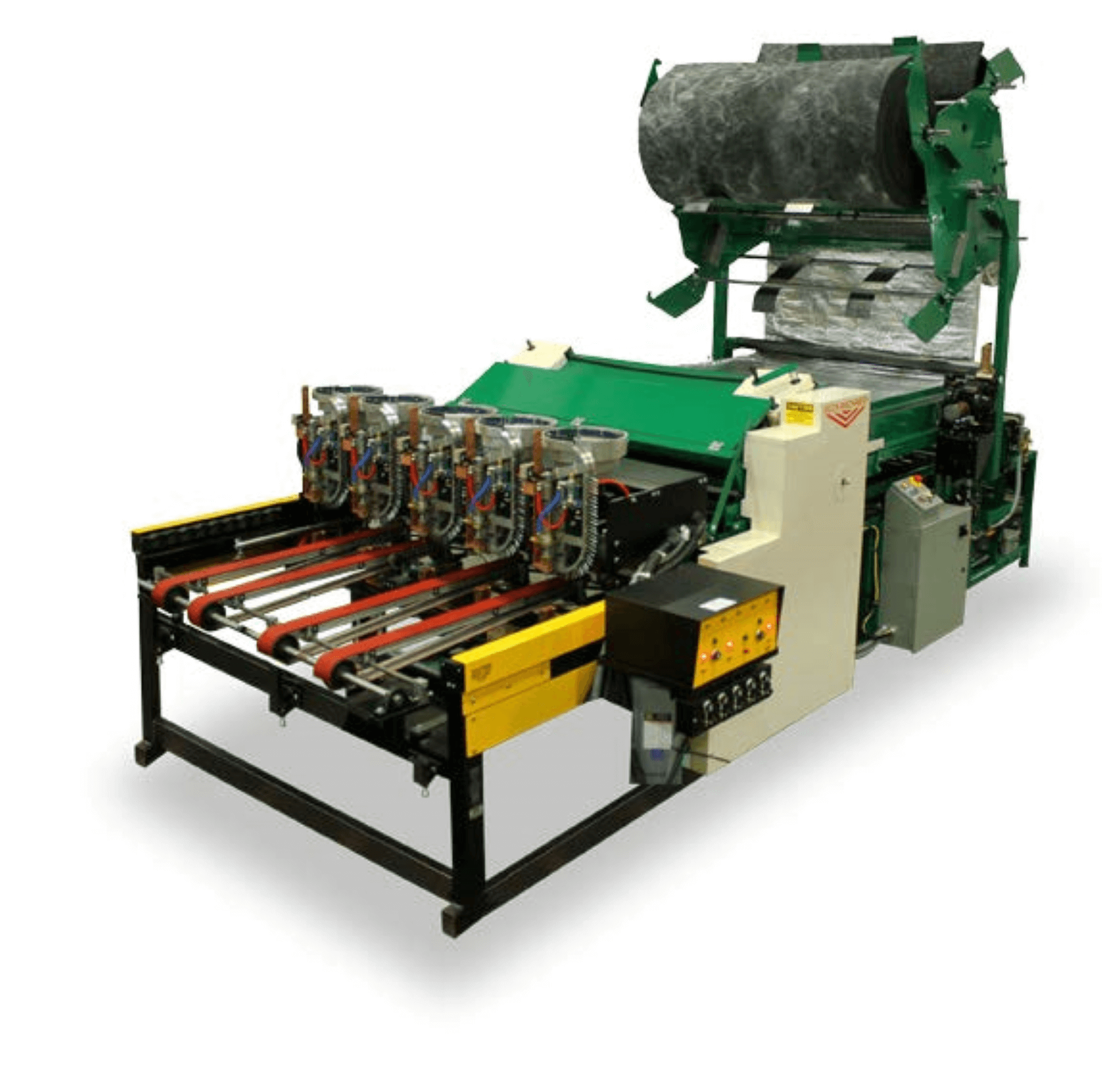

Automatic Duct Liner System

Features & Benefits

Heavy-duty patented liner shearing, capable of processing all types of liner material designed for use in coil line duct fabrication. No tooling or blade changes required. (US Patent #9,981,399 B2)
Safe push button control allows fast, safe and easy threading and crop cutting of new instableation rolls
Rows of pins spaced to SMACNA standard for low and high velocity air flows. Pin placement can be customized via the control system
Unit automatically controlled by the VICON Control System
Easy, open access to glue heads for cleaning
Industry leading guiding system, no adjustments required

Standard Specifications

Automatic adhesive extrusion application system
Multi-speed drive for optimum pinning speed or bypass of unlined duct
Designed to apply 44”, 47”, 48”, 56”, 59”and 60” wide liner
Low profile liner cradle/uncoiler
Multi-head pin spotter: choice of Duro Dyne® or Gripnail®

Options

Patented Four (4) position insulation coil holder to allow for rapid change of insulation sizes US Patent #7,926,757)
High-Speed Multi-head pin spotter

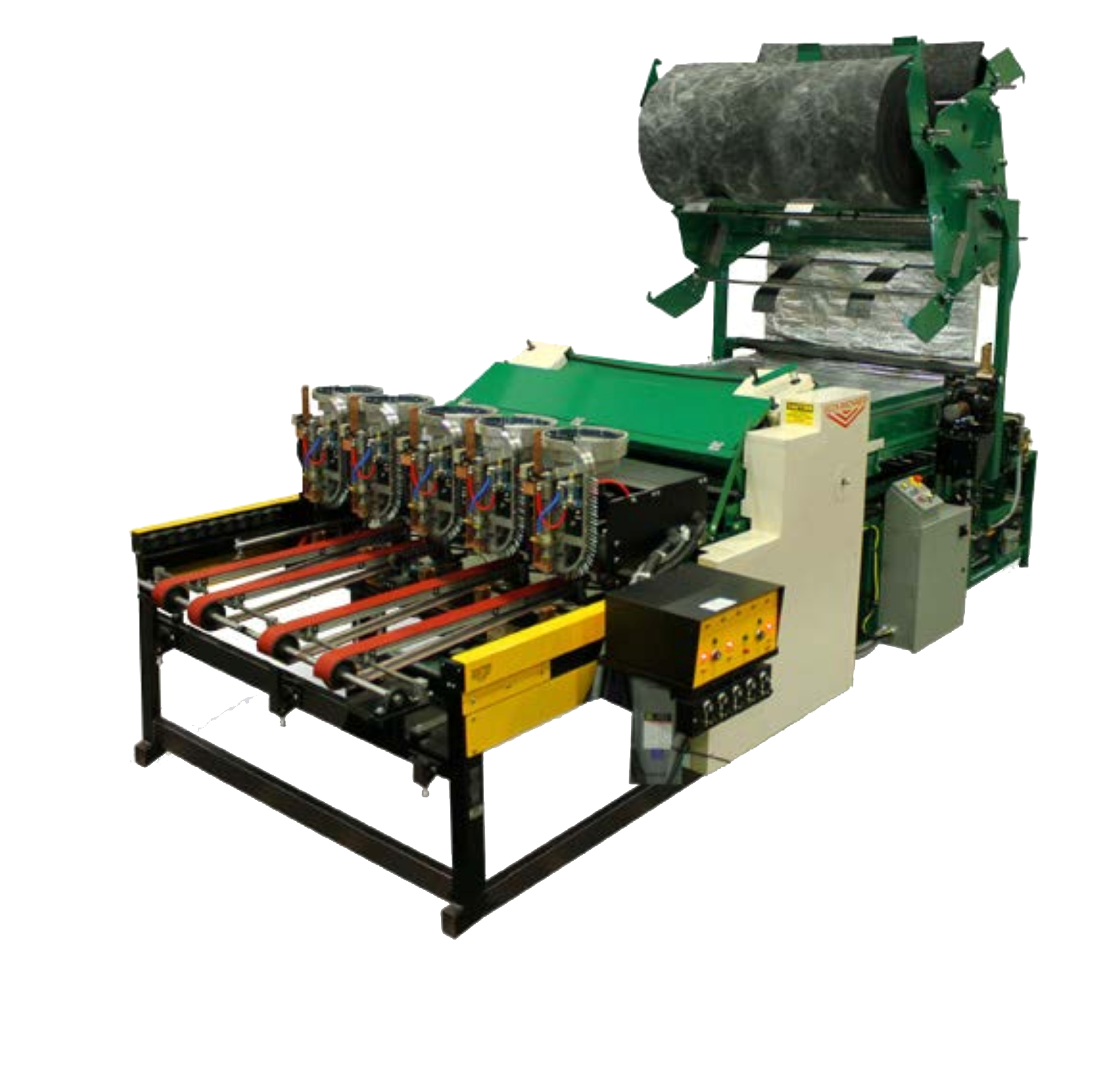

Vicon Automatic Duct Liner Application System
