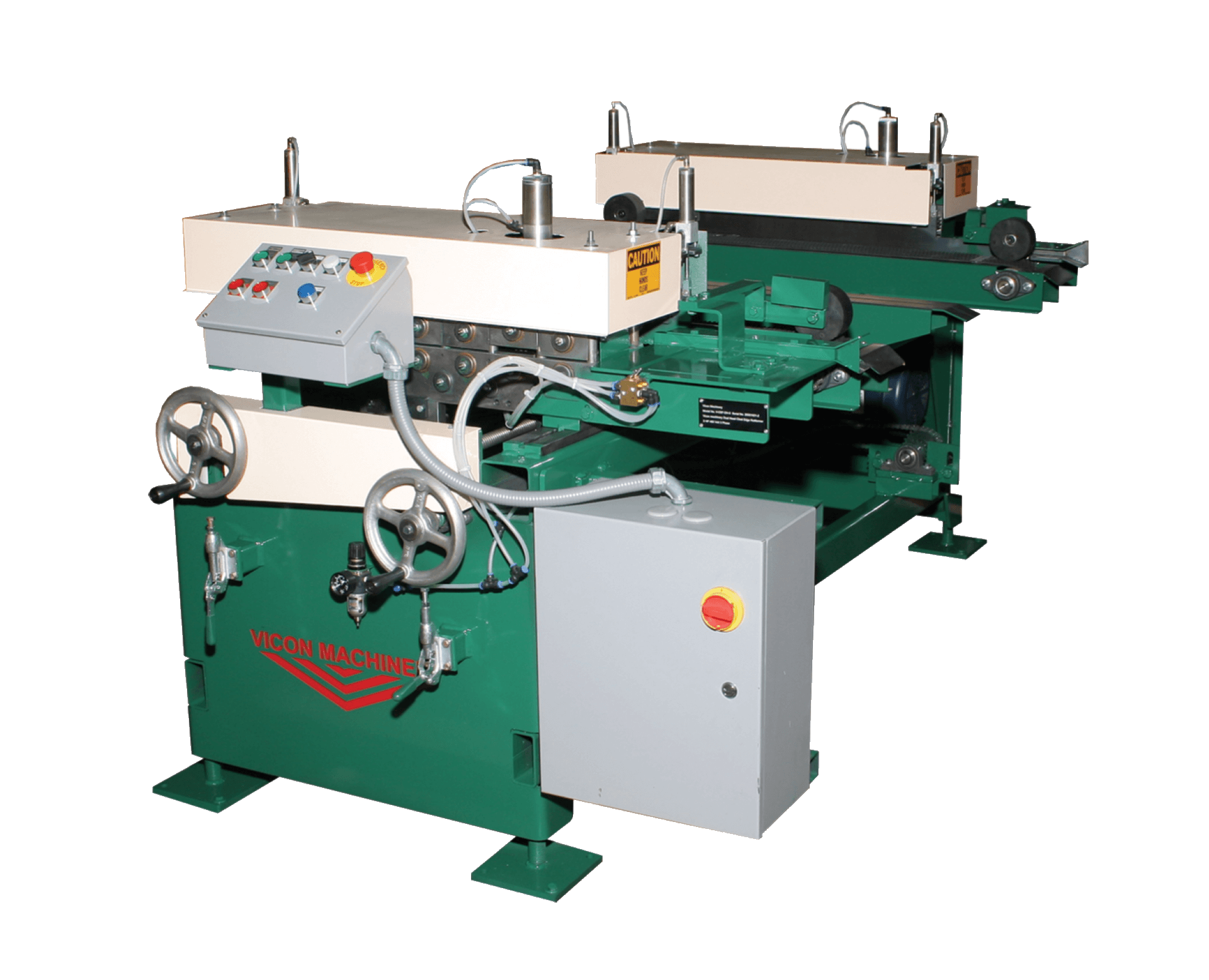

The VICON Dual Head Cleat Edge Former rollforms a 7/16” cleat edge on both ends of the duct after the Male and Female lockseam has been rollformed.
Features & Benefits
| Cleats can be formed on either the short or long leg of L-section or full wrap duct |
| Reliable, quiet performance |
| Accurate positioning with precision ball screws |
| Large heavy-duty bearings with inner races and grease fittings protect rollformer and extend the life of the machine |
| Pneumatically operated bypass guides with wedge-grip conveyors allow blanks to be fed through for other types of duct connectors |
| 18-26-gauge mild steel capacity with no adjustments |
| 7/16" cleat edge with minimum cleat length of 4" |
| 3HP motor coupled to a heavy-duty oil bath gear reducer |
| 8 station heavy-duty conventional roll form heads |
| Heavy-duty roller chain drive (no belts) Robust 1" diameter stress proof roller spindles |
Options
| 72” coil capacity |
