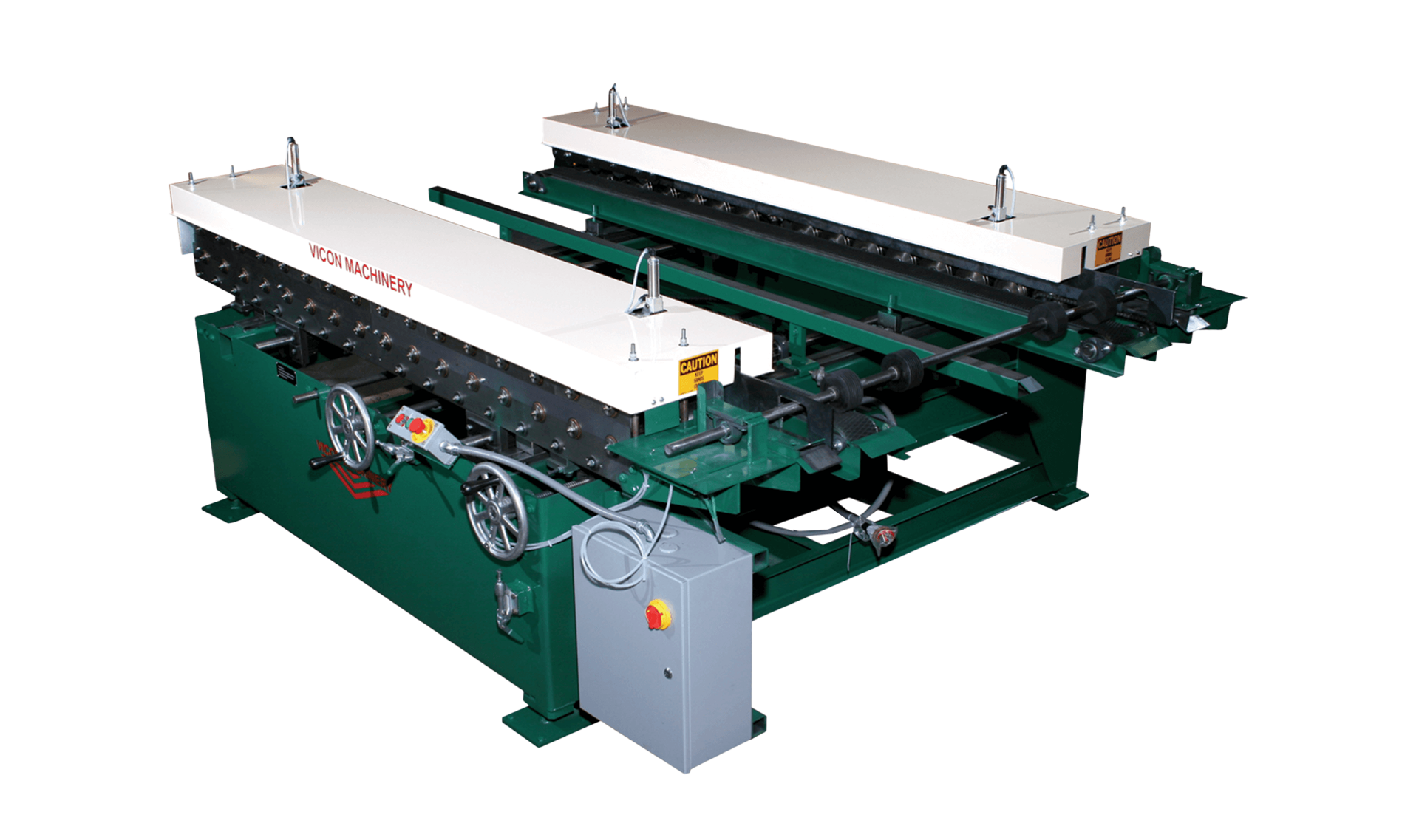

Dual Head TDX Rollformer

Features & Benefits

Reliable, quiet, long-life performance
Superior quality with 16 forming stations on each roll form head
Precision ball screws for parallelism and quick change over
Large heavy-duty bearings with inner races and grease fittings protect roll spindles and extend the life of the machine
Pneumatically operated bypass guides with wedge-grip conveyors allow blanks to be fed through for other types of duct connections

Standard Specifications

18-26-gauge mild steel capacity no adjustments required when changing metal thickness
10 HP motor coupled to a heavy-duty oil bath gear reducer
Heavy-duty roller chain drive (no belts)
Rugged 1-1/4” diameter stress proof roller spindles
16-gauge mild steel capacity available upon request

Options

“Grease duct, Welded duct” option available to produce right angle flange
Industrial hard chrome plated rollform tooling
Dual Head TDX
