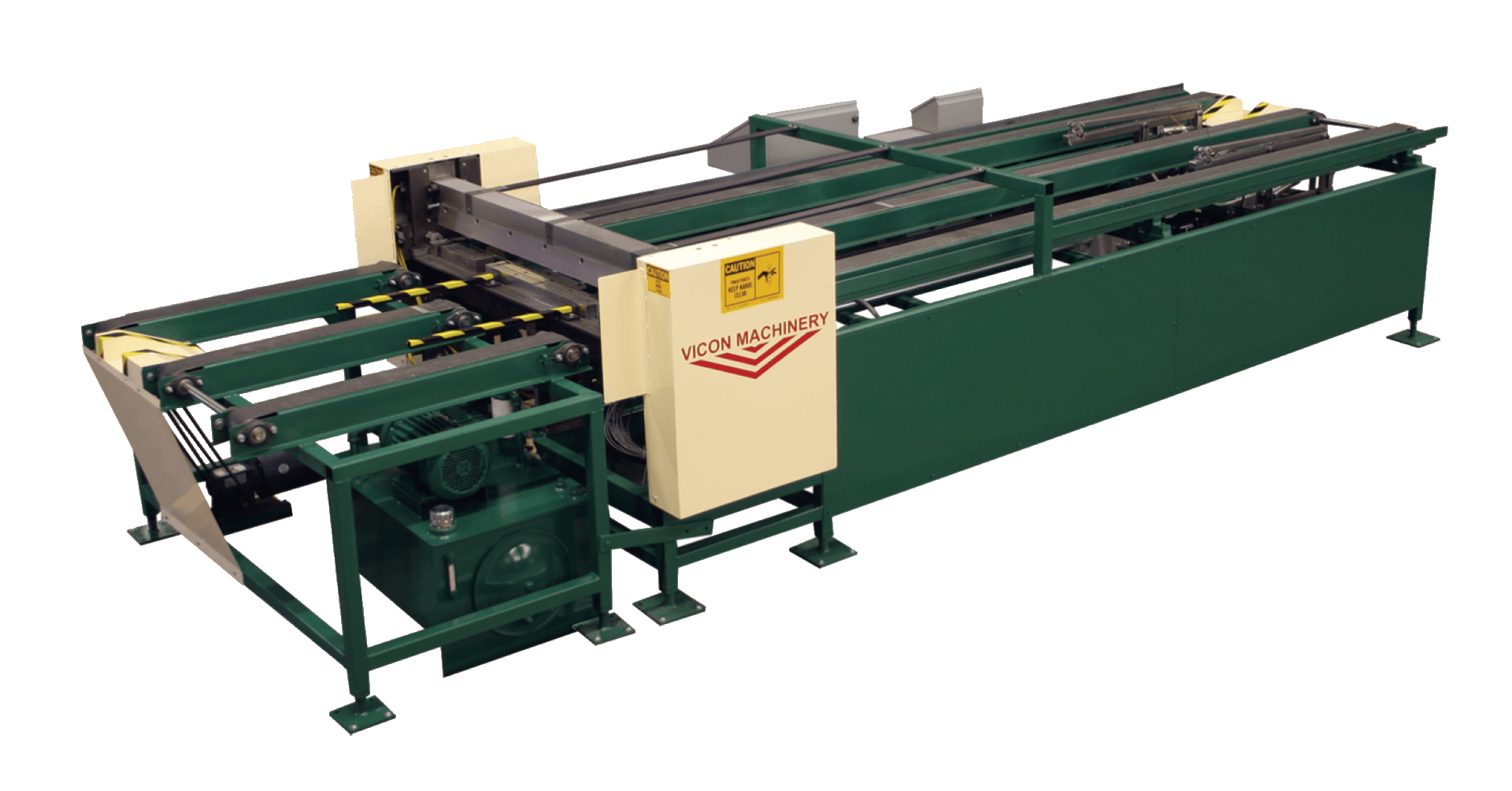

Full Wrap Automatic Brake System

Features & Benefits

High production front gauge gripper/ejector system with dual rack and pinion servo-drive ensuring squareness and accuracy
Reliable “Time Based Logic” eliminates need of adjustments to external sensors
Remote Coil Line Operator Control station
Industry leading guiding system, no adjustments required

Standard Specifications

Heavy-duty 5’ hydraulic bending unit with 16-26-gauge mild steel capacity
System capable of L-section, U-section or full wrap duct (min. size for full wrap is 6” x 6” unlined), maximum capacity 120” wrap perimeter
48” and 60” duct lengths for slip & drive/ raw duct and 44” and 56” duct lengths for TDX duct
Unit automatically controlled by VICON Control System

Options

L-Brake system also available
14-gauge mild steel capacity
Full Wrap Automatic Brake System
FULL WRAP BRAKE SYSTEM
Brochure
FULL WRAP BRAKE SYSTEM
