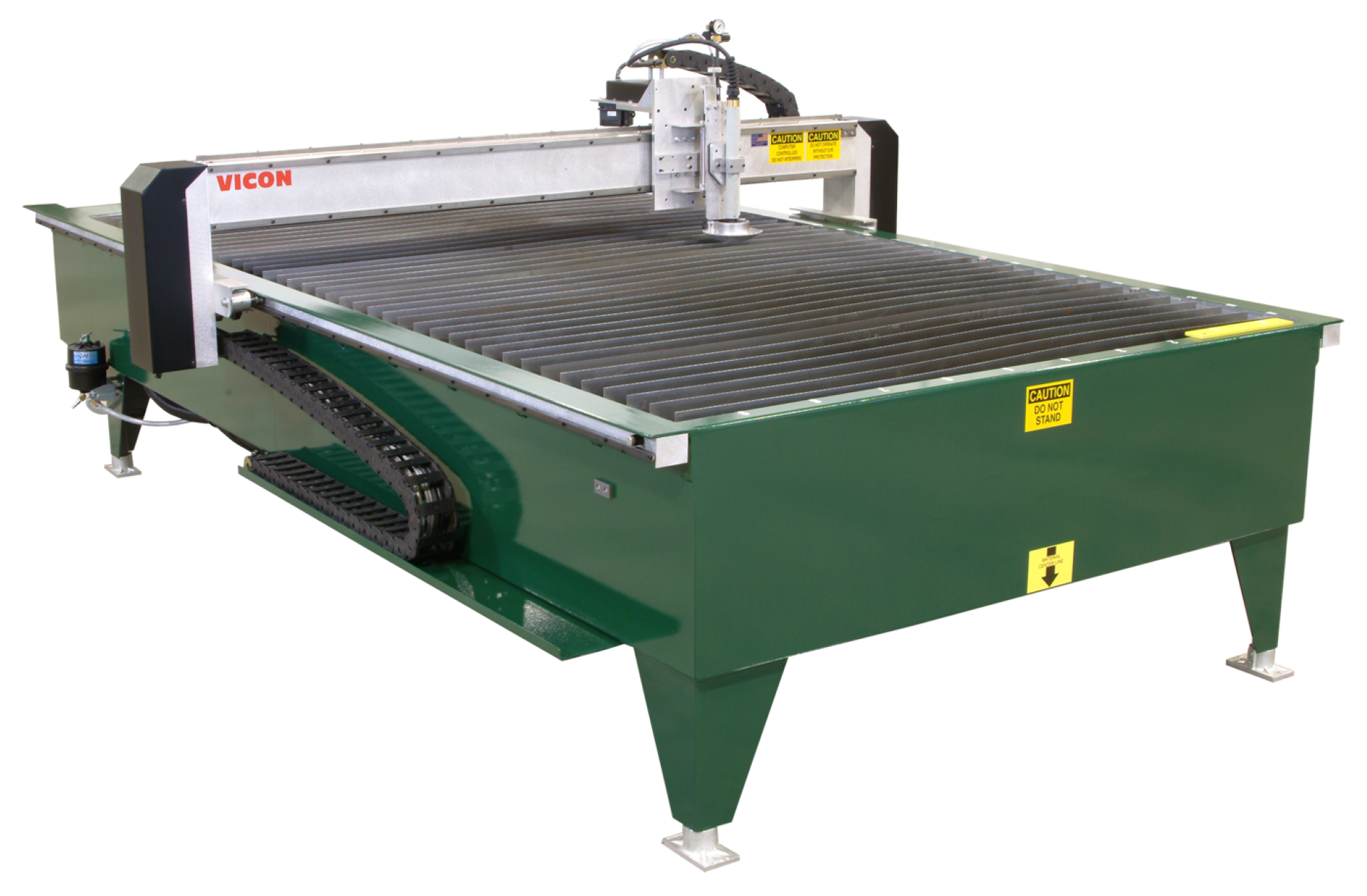

This durable yet versatile equipment offers the perfect solution for efficiently processing HVAC duct fittings. Rapid, precise, and efficient, this CNC cutting system significantly minimizes material wastage and operational expenses, leading to improved profitability.
The exclusive dual rack and pinion drives ensure exceptional positioning precision, resulting in unparalleled part quality. Additionally, material stops assist the operator in sheet loading, eliminating errors and reducing material wastage.
Features & Benefits
| Standard 5' x 10' cutting area with options for up to 6' x 20' cutting area |
| State-of-the-Art PC Control with Vicon HVAC Cutting Software enables the programming, loading of new jobs and editing to be done at the machine while it is operating |
| Rigid, extruded aluminum gantry results in “low inertia” producing highly accurate parts, sharp corners and notches |
| Rugged drives are sized for minimizing system wear and tear while providing peak performance |
| Non-lubricating gears and bearings |
| Quick release magnetic torch holder allows for consumables to be changed quickly and without tools |
| State-of-the-Art PC Control with Vicon ViSoft Cutting Software enables the programming, loading of new jobs and editing to be done at the machine while it is operating |
| On screen status control provides efficient control and easy diagnostics |
| Torch choice flexibility for cutting a variety of materials from gauge to ½” plate |
| Quick release magnetic torch holder allows for consumables to be changed quickly and without tools |
| One-piece down draft table includes built-in automatic CNC controlled exhaust fan circuit (only on during cutting) |
| Effective Cutting Area | 5' x 10' (standard) |
| Material Capacity | 28-gauge to 1/2" thick plate |
| Machine Dimensions | 144" x 90" x 35" |
Options
| Liner cutting feature |
| High-speed cutting feature |
| Download interface from most CAD/CAM software programs |
| Office programming system including PC, software, LAN cable and hub |
| Vicon ViSoft Value Added Software Modules |

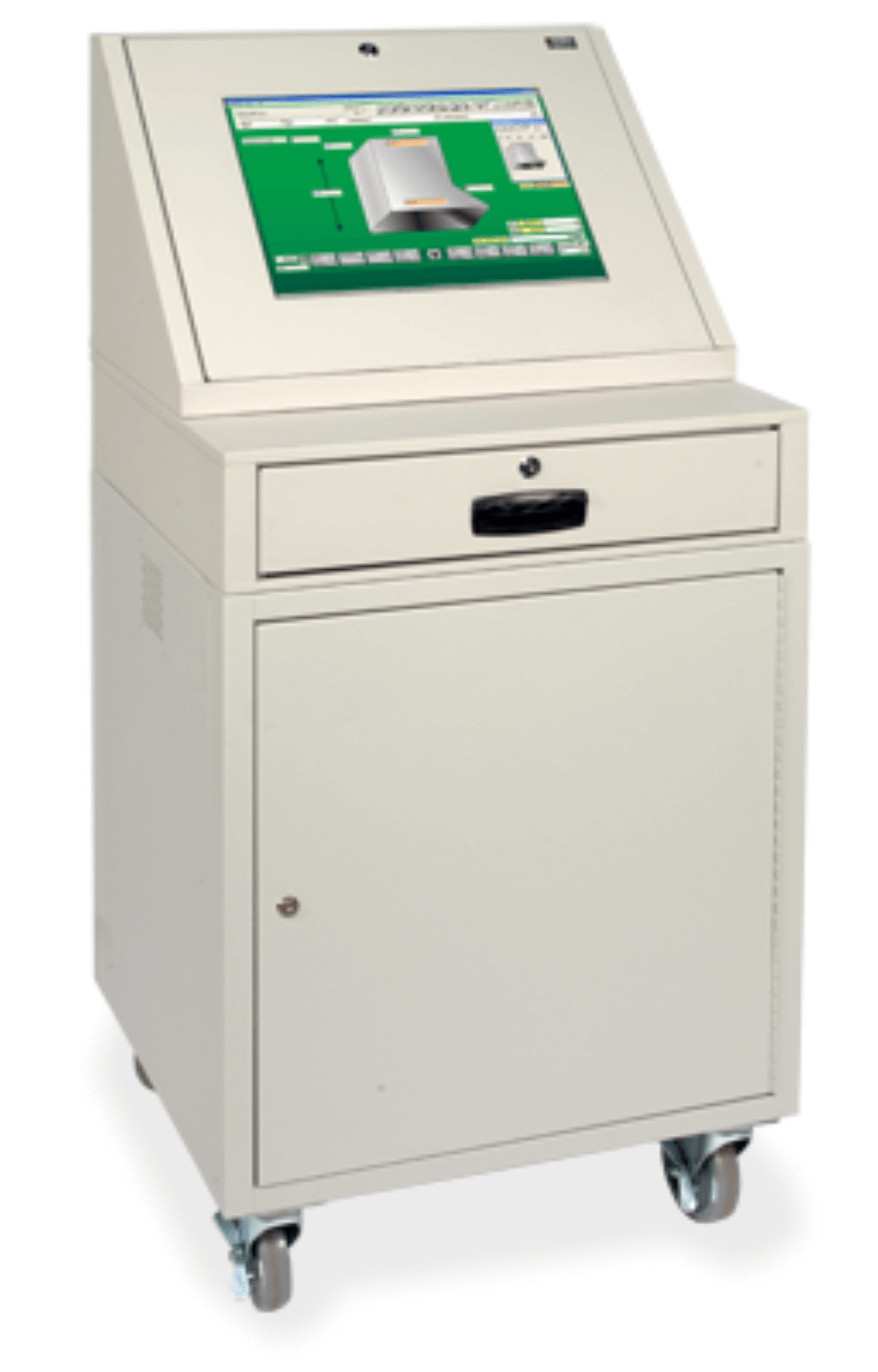

| Industrial grade PC Control cabinet |
