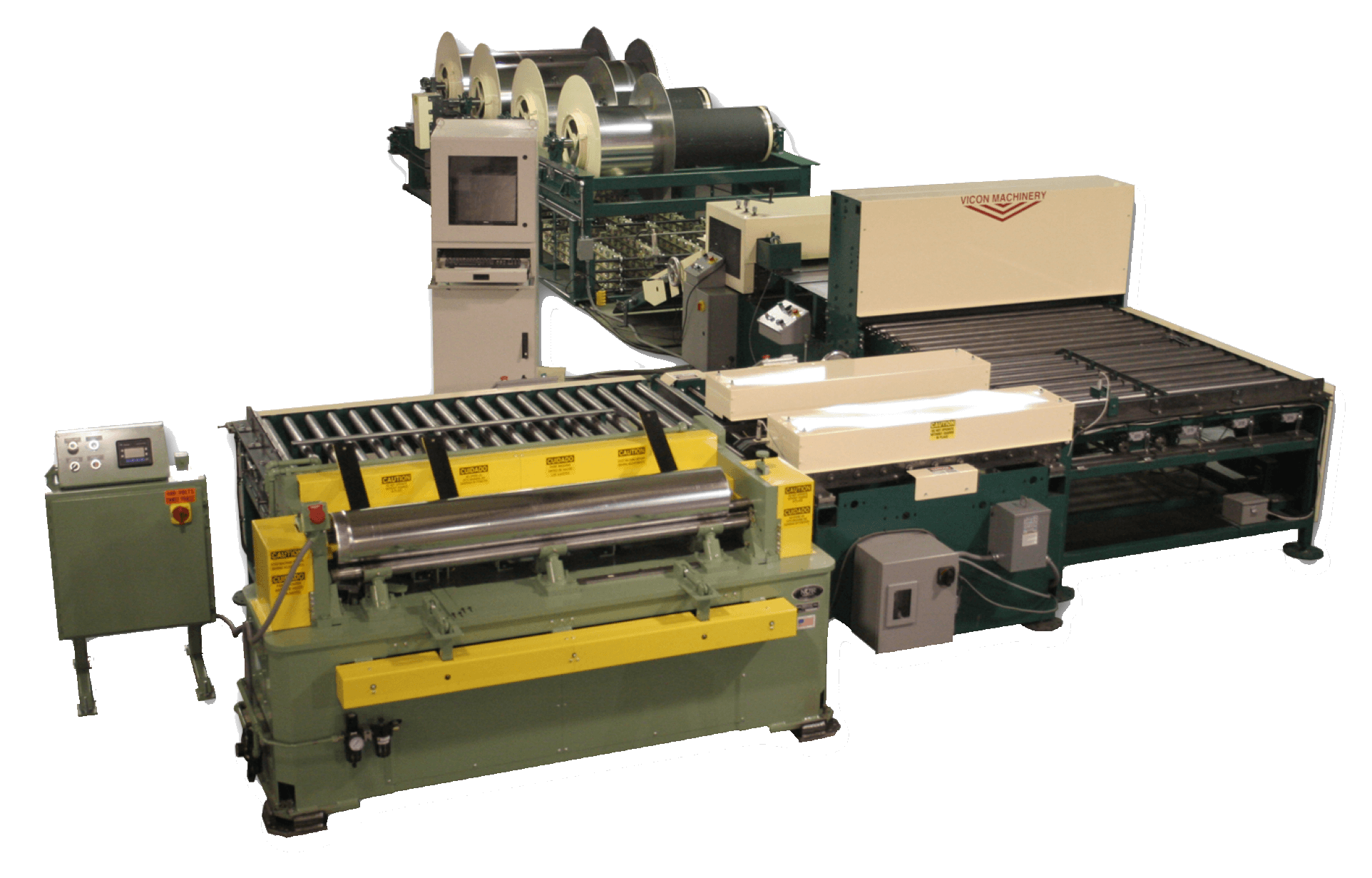

The VICON Shear & Bend offers a practical solution for shop needs, featuring a patented coil cradle system, ramp, straightener unit, beader, notching unit, and heavy-duty shear and bending unit. The Full Coil line can be easily completed with additional modular VICON coil line components.
The Vicon Coil Cradle System simplifies coil loading with a lightweight, removable keeper end plate for easy one-person attachment.
Powered by Vicon Coil Line Software for Windows®, the Duct-Line Express offers a user-friendly interface configurable to SMACNA standards or customized to your shop. Backed by Vicon’s expert engineers, it ensures precision, efficiency, and seamless operation.
Features & Benefits
| Cleats can be formed on either the short or long leg of L-section or full wrap duct |
| Reliable, quiet performance |
| Accurate positioning with precision ball screws |
| Large heavy-duty bearings with inner races and grease fittings protect rollformer and extend the life of the machine |
| Pneumatically operated bypass guides with wedge-grip conveyors allow blanks to be fed through for other types of duct connectors |
| 18-26-gauge mild steel capacity with no adjustments |
| 7/16" cleat edge with minimum cleat length of 4" |
| 3HP motor coupled to a heavy-duty oil bath gear reducer |
| 8 station heavy-duty conventional roll form heads |
| Heavy-duty roller chain drive (no belts) Robust 1" diameter stress proof roller spindles |
Options
| 72” coil capacity |
| Precision, high-speed servo systemy |
| Tie rod hole punch unit Model HP-5 provides tie rod and damper holes per SMACN standards or customized to your shop standardsy |
| Male button punch system for Snaplock male edgey |
| Economical overfed coil cradle systems for smaller overall footprinty |
