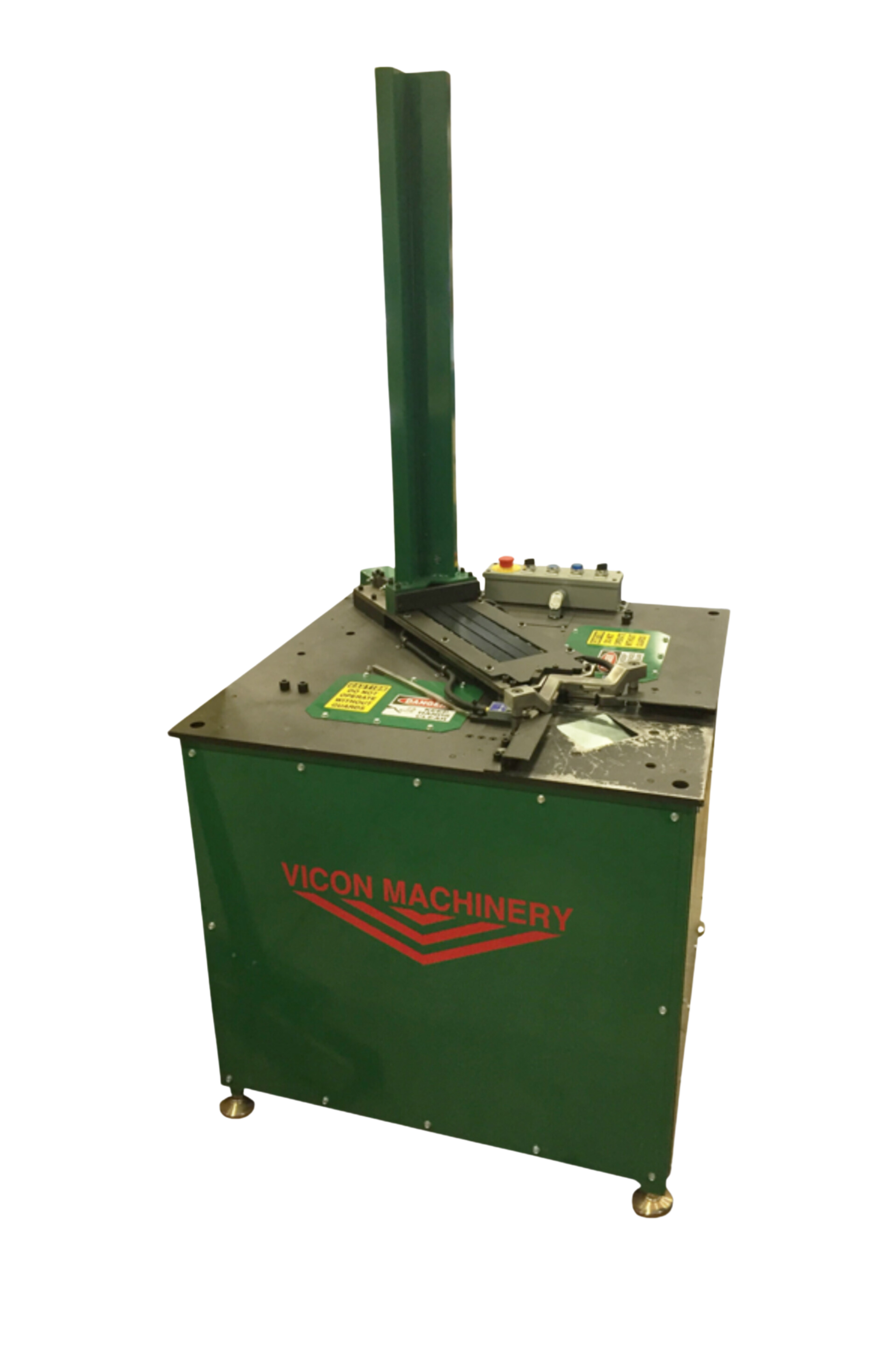

Single Head Corner Insertion Machine

The Vicon Single Head Corner Insertion Machine is built with a robust frame structure specifically for inserting flanged duct fittings at single corners. It is compatible with various brands of TDX™, TDF™, TDC™ stackable corners and is equipped with standard tooling for 16–26-gauge ducts. The machine offers interchangeable tooling with quick changeover for different flange types. It requires 100 PSI air pressure for 16-gauge processing and is designed for customizable operator working height, whether placed on a tabletop or in-ground/pit placement.

Features & Benefits

Standard tooling designed for 16–26-gauge mild steel duct
Tabletop or In Ground Design
Heavy-duty frame structure design
Utilizes various brands of stackable corners
Interchangeable tooling available for various flange types, if required
Air requirement: 100 PSI for 16-gauge material
Tooling designed for quick changeover
Voltage: 110/1/60Hz
Manual or Auto Push Button controls
Duct Connector types TDX™, TDF™, TC™

SINGLE HEAD CORNER INSERTION
Brochure
SINGLE HEAD CORNER INSERTION
