ViStream Abrasive Waterjet

Abrasive Waterjet Cutting System

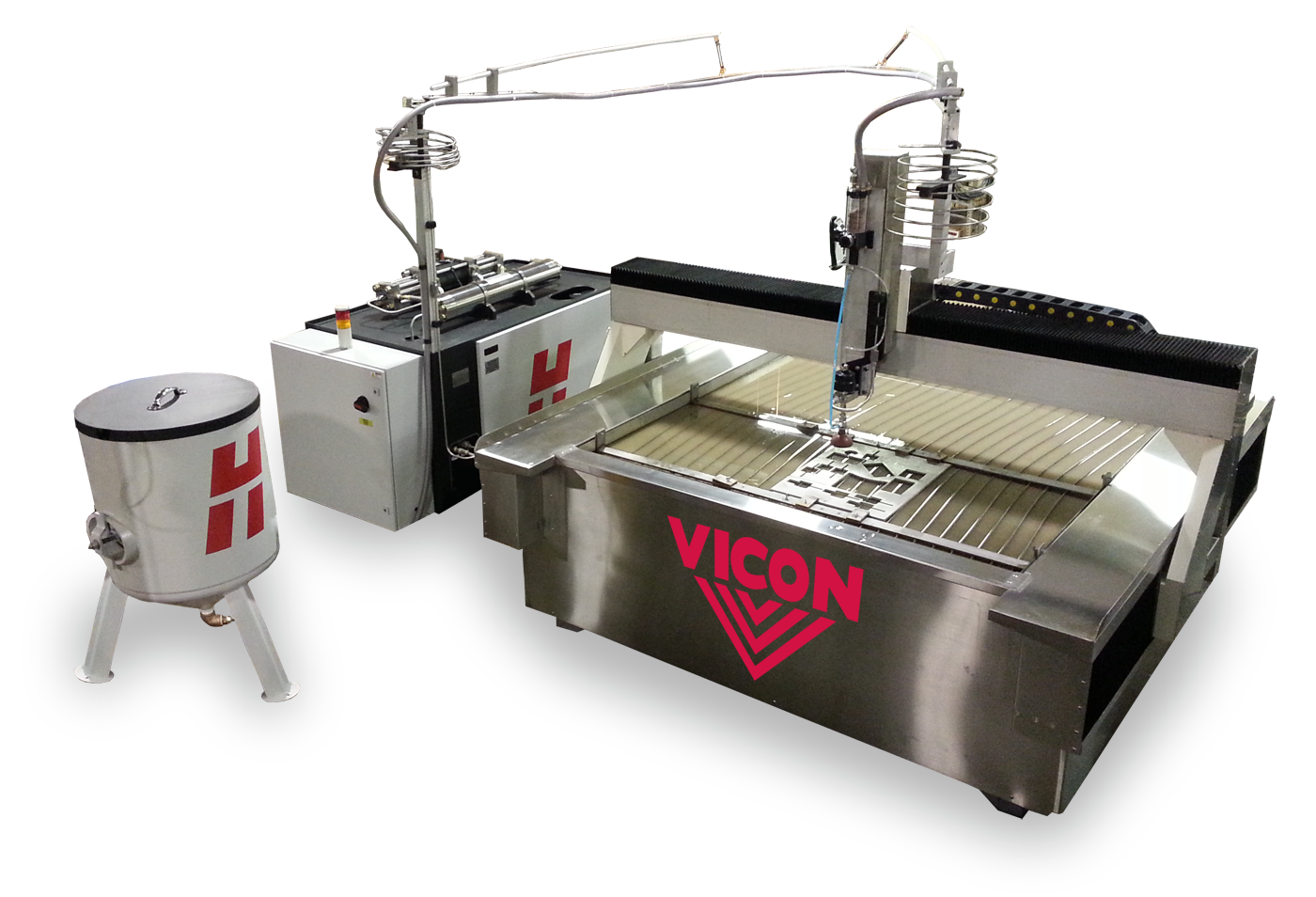

This newly developed machine is equipped with Hypertherm HyPrecision Intensifier capable of cutting materials up to 4” with extremely accurate tolerances. This system is based on newly developed gantry and motion system, along with the recently enhanced electronics and Vicon Control software. The system is available in 5' x 5' or 5' x 10' models.

Features & Benefits

Precision Ball Screw Drives
Yaskawa Servo Motors and Drives
Exclusive Vicon PC Control System and Auto Nesting Software
410 Stainless Steel Tank Frame
304 Stainless Steel Cosmetic Covers
Rigid Extruded Aluminum Gantry
Hypertherm Pump Technology & Abrasive Delivery System

Optional Features

Recirculating Chiller Unit for the Pump
Four Compartment Stainless Steel Strainer Tank for Excess Water Drainage

Specifications
Accuracy	± .005"
Cut Speed	400 IPM
Traverse Speed	400 IPM
Repeatability	.002"
Z Vertical Travel	Approx. 8"
Table Sizes	5' x 5' 5' x 10'

Available Software
Click on the screenshot to the left to view available software for Vicon's cutting systems.
